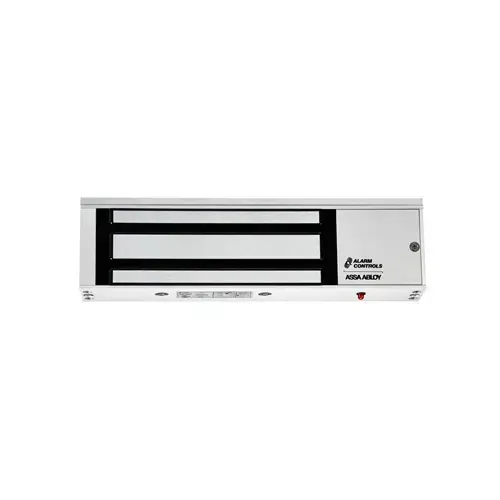

Alarm Controls 600LB Single Door Magnetic Lock Satin Aluminum Clear
Item #: 600LB by Alarm Controls
UPC #: 604840236379
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- SPDT 3A Relay Contacts
- 600 Pound Holding Force
- Operates on 12 or 24 VDC
- Low Current Draw: 400 mA at 12 VDC, 200 mA at 24 VDC
- UL and Canadian UL Listed, R16759
Finish
Satin Aluminum Clear
Series
600 Series
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
Holding Force
600lb
Operating Voltage
12VDC/24VDC
Package Qty
1
Switch Type
MBS
Finish Description
Satin Aluminum
Product Type
Electromagnetic Lock
Product Height
1-11/16 Inch
Product Length
9-7/8 Inch
Armature Size
7-1/4" L x 1-1/2" H x 1/2" W
ADA Compliant
No
Finish Family
Aluminum
Product Depth
1 Inch
Standards
UL 294 Listed; UL 10C Fire Rated; CAN/ULC-S104 Fire Door Conformant; ULC-S527 Listed; UL 864 Listed
For Door Type
Single
Indoor or Outdoor Use
Indoor
Monitoring Option
Bond Sensor has SPDT 3A Relay Contacts
Features
Magnetic Lock with Red LED Status Indicator, Bond Sensor and Door Status Sensor; Built-In Arc Suppression; Instant Release, No Hysteresis; Self-Drilling Tec Screws; Non-Aluminum Plated; E-Z Mount Header Bracket and Template Provided
Voltage
24 VDC
Mounting Type
Bracket Mounted
Application
Can be Used with Any Access Control System; Ideal for High-Use Areas for Traffic Control in Interior Applications
Warranty
LIFETIME LIMITED WARRANTY
Operating Temperature
14 to 131°F
Function
Magnetic Lock
Manufacturer Parent
Assa Abloy
Resistance Properties
Corrosion Resistant
Sub-Series
600LB
Package Height
3"
Package Length
10"
Package Width
3"
Item Weight
5 lbs
Dimension
9-7/8" x 1-11/16" x 1"
Use With
Push Button, Reader, or Sensor
Material
Aluminum
Manufacturer Warranty
Limited Lifetime Warranty
Magnet Size
9-7/8" x 1-11/16" x 1"
Power Supply
Wired
Hazardous Material
No
No of inners
1
Product Overview
Armature Size 5-1/2 L X 1-1/4 W X 7/16 D 12 Or 24 Volts Dc Jumper Selectable 400 Ma. @ 12 Vdc 200 Ma. @ 24 Vdc Green Status Led Instant Release No Hysteresis.
