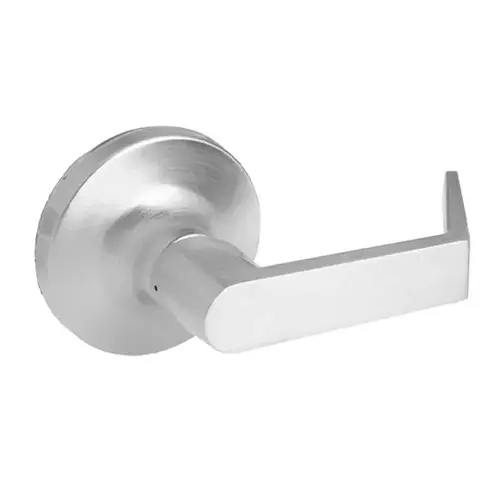

Yale AU455LN 626 Single Dummy Grade 2 Augusta Lever Exit Device Trim Satin Chrome Finish
Item #: AU455LN 626 by Yale
UPC #: 049306013086
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Function
55-Single Dummy Trim
Design
Augusta
Finish
Satin Chrome
Thickness
1-3/4" - 2"
Package Volume
0
Hand
Not Handed
Grade
Grade 1
Package Qty
1
Color Code
626/US26D
Rose/Escutcheon Design
3-1/2 In. Diameter
Base Material
Brass or Bronze
Lever/Knob Design
AU - Augusta
Manufacturer Parent
Assa Abloy
Knob/Lever Size
5 Inch
Finish Description
Satin Chrome
Sub-Series
CL_Cylindrical_Locks_yale_commercial_4
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Lever Length-Inches
5 Inch
Handle Type
Lever
Application
Industrial and Commercial
Trim Material
Cast Zinc (Lever); Brass (Rose)
Function Family
Dummy
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Rose Diameter
3-1/2 Inch
Lever Style
AU-Augusta
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
3-3/64 Inch
Features
Rugged Reliability and Performance
Warranty
7 year
Series
5400LN Series
Finish Family
Satin Chrome
Product Overview
Single Dummy, Cylindrical Trim, AU Lever Design, Satin Chrome
Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it's the favorite among architects and building owners who demand the highest standard of product quality.
Designed for industrial, commercial, and institutional settings.
Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.
• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.
• 13 finish options.
• 3 lever designs.
• 24 functions including electrified.
• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2" throw is standard.
• A 3/4" latch throw for fire-rated or pairs of doors is available.
• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.
• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.
• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.
• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.
• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
• Expanded cylinder and keying options: - Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. - Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. - Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.
• 3-1/2" roses cover ANSI/BHMA hollow metal door cutout.
