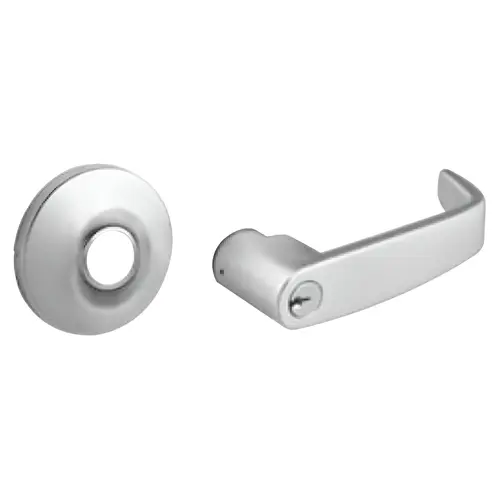

Sargent 10U93 LL 26D 10 Line U93 Single Lever Dummy Trim, Satin Chrome

10 LineCylindrical Lever Lock

Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles. And in addition to preventing unwanted entry, the 10 Line is designed to conform to national and state fire and handicapped requirements.

Features:

• Installs in one minute or less

• Adapts to fit multiple thrubolt positions

• Customizable with a variety of lever styles, finishes and functions

Benefits:Efficient Installation:

• Pre-assembled components make installation quick and easy

Flexible:

• Accommodates retrofit applications and a variety of door preparations

Customizable:

• Offered with a variety of lever styles, roses and finishes

Certification Compliance:ANSI/BHMA:

• Certified ANSI A156.2 Series 4000 — Grade 1

UL:

• UL listed to U.S.A. and Canadian safety standards
• Listed for 3 hour door

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies

ADA:

• All levers conform to ADA requirement for barrier-free accessibility

California Code:

• Levers (L, J & P) conform to California Administrative Code Title 19 and 24

Hurricane Code:

• All individual components of a total door opening are required to comply with each code.
• Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components.

Specifications:For Doors:

• 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard

Backsets:

• 2-3/4" (70mm) backset w/ 1-1/8" front (standard)

Cylindrical Housing:

• Steel, zinc dichromate finish

Front:

• Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel 2-1/4" (57mm) x 1" (25mm) (included with 20-)

Strike:

• Wrought brass, bronze and stainless steel 800 curved lip strike — standard

Hand:

• All 10 Line Locks are non-handed except for the G & Y Levers

Roses:

• Heavy wrought brass and bronze

Latch:

• Stainless steel 1/2" (13mm) throw

Cylinder:

• Brass, 6 pin, LA keyway standard

Keys:

• Two, nickel silver

Masterkeying:

• Can be master keyed or grand master keyed Construction key systems available

Finishes:

• 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP

Door Prep:

• ANSI/BHMA A156.115

Minimum Stile:

• 4-1/2" (114mm)

Strength, Durability and Security:

• Cycle Test: Exceeds 9 times ANSI/BHMA A156.2 Grade 1 requirements

• Abusive Locked Lever Torque- without entry gained:
• Exceeds 1.5 times ANSI/BHMA A156.2 Grade 1 requirements

• 7 YEAR LIMITED WARRANTY –
• no service required to maintain warranty

Convenience:

• Installs in 1 minute or less

• Quickly adapts to fit multiple through-bolt positions

• User friendly packaging

• User friendly instruction sheets

• Convenient installation diagram on box

Design:

• Solid feel and precise lever action

• Slim rose design available

• Decorative Levers
• Coastal Series designs
• Gulfport and Yarmouth

• Levers are solid one piece cast construction,
• except "J" lever

Flexibility:

• Fits a variety of door preparations with adaptable through-bolt positioning

• Accommodates retrofit applications with
• optional 2-3/8", 3-3/4" and 5" backset latches

• 6 ADA lever styles to complement a wide array of design applications

• Levers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation

• 11 Architectural grade finishes

• 21 Functions

• SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Security:

• Classroom security and multiple locking functions available

• Security key systems available
• (Signature, Keso, BR-XC, XC)

Applications:

• Designed to conform to national & state fire and handicapped requirements

• Grade 1 Lock

• Heavy duty commercial and institutional interior and exterior doors

• Offices

• Schools/Universities

• Hospitals

• Manufacturing facilities
