Single Dummy Monroe Lever Grade 2 Cylindrical Lock Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

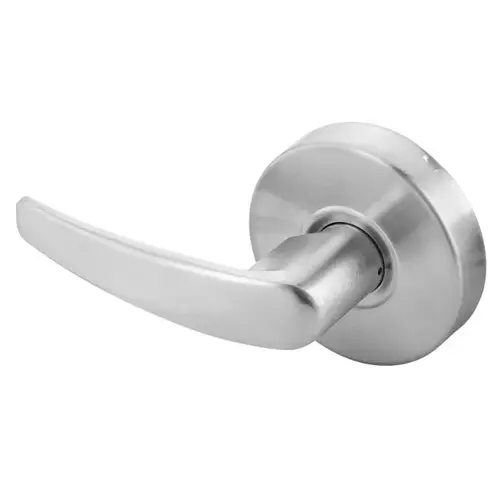

Yale MO4655LN 626 Single Dummy Monroe Lever Grade 2 Cylindrical Lock Satin Chrome Finish

Item #: MO4655LN 626 by Yale

See reviewsSee reviews
See reviews summary

$38.33

/each
SAVE UP TO 3.83
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • ANSI / BHMA A156.2 Grade 2
  • ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
  • Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
  • UL Fire Rated Up to 3 Hours
  • Adjustable from 1-3/8" to 1-3/4" Door Thickness
  • Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
  • Universal Front for Both Flat and Beveled Door Edges
  • Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
  • Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
  • Non Handed
  • Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
  • Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
  • Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
  • Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.

Finish

Satin Chrome

Function

Single Dummy

Series

4600LN Series

Design

Monroe

Strike

1-1/4" Curved Lip

Backset

2-3/4" Backset

Color Code

626/US26D

Dimension

4-1/2" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter

Material

Cast Zinc

Door Thickness

1-3/8" to 1-3/4"

Manufacturer Warranty

Limited 3 Year Warranty

Rose/Escutcheon Design

Round Rose

UL Listing Type

UL-cUL Fire Rated up to 3 Hours

Door Range

1-3/8" to 1-3/4"

Hazardous Material

No

Cross Bore Size

2-1/8" Bore with Optional Thru Bolts

Finish code

626

Lever Knob Design

Monroe Lever

No of inners

1

No Of Pins

6 Pin

Product Overview

4600(LN) Series Grade 2 Cylindrical Lock, Monroe Lever (MO), Single Dummy Trim, Satin Chrome

Ideal for commercial applications.

Ideal choice for a wide variety of grade 2 commercial applications where consistent quality, ease of use and installation are required at an economical price.
