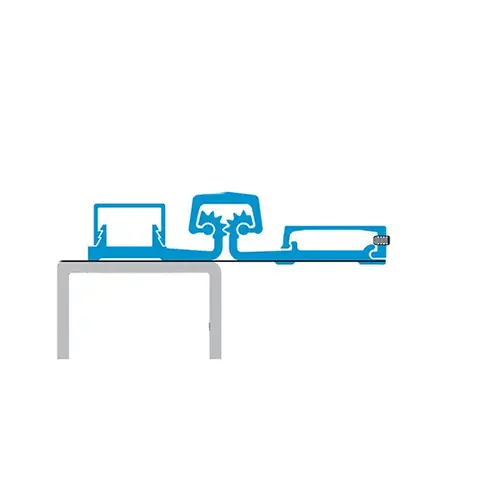

Select Hinges SL57 CL SD 95 CONTINUOUS HINGE, FULL SURFACE STANDARD DUTY, 95 INCHES CLEAR ALUMINUM
Item #: SL57 CL SD 95 by Select Hinges
In Stock $285.60 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
For Use With
1-3/8" to 1-3/4" Doors
Application
Geared Continuous Hinges are Build to Handle Abuse From High Traffic Applications
Function
Continuous Hinge
Maximum Door Width
48 Inch
Hinge Type
Continuous Full Surface
Finish Description
Aluminum
Bearing Type
Thrust Bearings
Product Length
95 Inch
ADA Compliant
No
Finish Family
Aluminum
Hinge Size
95 Inch
Product Material
Aluminum 6063 T6
Standards
ANSI/BHMA A156.26-2006 Grade 1
Fastener Size
12-24 X 3/4" Self Drilling, Thread Forming 410SS Phillips Undercut Flathead Screws , 1/4-20 Through Bolts, 1/4-20 Shoulder Screws
Function Family
Hinge/Pivot
Product Type
Hinge/Pivot
Manufacturer Parent
Select Products Limited
Sub-Series
HP_Continuous_Hinges_select_20
Fits narrow (7/8") frame face. Tamper resistant, removable door leaf cover. 1/16" door inset. Standard barrel nuts accommodate 1-3/8" to 1-3/4" doors. Long barrel nuts available for 2" to 2-1/4" doors.
All SL57 geared continuous hinges are BHMA Grade 1 certified.
Features & Benefits
- LOAD/FREQUENCY RATINGS: For 1-3/8" – 1-3/4" doors standard; long barrel nuts available for 2" – 2-1/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
- Heavy Duty – Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.
