CRL's UV Glass-to-Wood Hinges provide the perfect solution for bonded glass cabinet doors installed into a wood surround frame. These brushed stainless hinges can be bonded to glass up to a 1/2" (12 mm) thick per pair of hinges. A threaded pin in the Bottom Hinge permits easy installation and removal after glass bonding. Minimum order is one pair (top and bottom).
Product Warning:
3/8" Total Height Glass Deduction (3/16") per side. Width deductions are determined based on desired gaps and or hardware that must be cleared.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

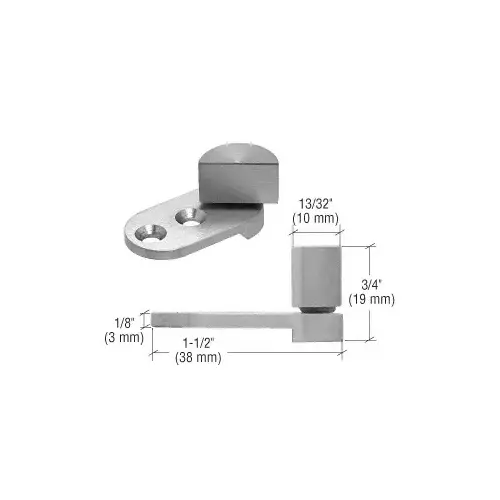

CRL Small Brushed Stainless UV Glass-to-Wood Swing Hinge Pair
Item #: UV6262 by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For Inset Glass Doors in a Wood Cabinet
- Weight Capacity 22 Lbs. (10 kg)
Weight Capacity
22 lb. (10 kg)
Finish
Brushed Stainless Steel
Maximum Weight Capacity
22
Material
Stainless Steel
Overall Width
1-1/2
Width
13/32
Glazing Thickness
1/2
Finish/Color
Brushed Stainless Steel
Height
3/4
Profile
Small
Product Overview
CRL's UV Glass-to-Wood Hinges provide the perfect solution for bonded glass cabinet doors installed into a wood surround frame. These brushed stainless hinges can be bonded to glass up to a 1/2" (12 mm) thick per pair of hinges. A threaded pin in the Bottom Hinge permits easy installation and removal after glass bonding. Minimum order is one pair (top and bottom).
Product Warning:
3/8" Total Height Glass Deduction (3/16") per side. Width deductions are determined based on desired gaps and or hardware that must be cleared.
