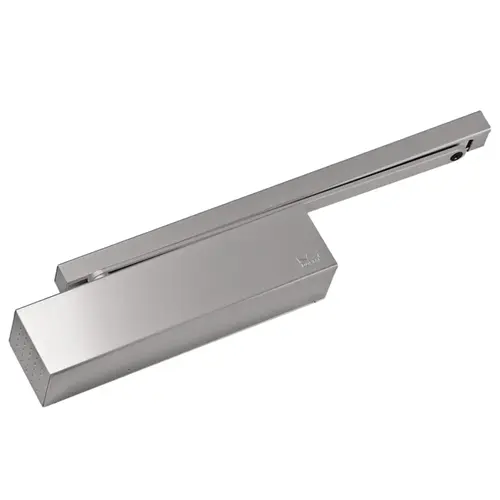

DORMA TS9315PT689 Size 1 - 5 Soffit Mounted Surface Push Side Track Closer Aluminum Finish
Item #: TS9315PT689 by Dorma
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aluminum Painted
Function
Track Arm
Mount
Soffit Push Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Series
TS93 Series
Grade
ANSI/BHMA Grade 1
Spring Size
Adjustable 1-5
Application
Steel Cam; Roller; Adjustable Spring; Incorporating a Track Arm Assembly
Hand
Non-Handed
Handing
Non-Handed
Warranty
25 Year limited warranty
Mounting Type
Soffit Push Side
Door Thickness
1-3/4 inch
Product Height
2-7/8 Inch
Product Length
11-1/4 Inch
Product Width
2-1/2 Inch
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Aluminum
Closer Cover
Full Metal Cover
Standards
Grade 1 - ANSI/BHMA A156.4; UL and CUL; UL 10C; ANSI/BHMA A117.1
Closer Arm Type
Push Side Track
Function Family
Non Hold Open Door Closer
Fastener Type
Self-Tapping Machine Screws
Features
Push Side Installation Provides the Benefits of Track Arm Assemblies; Doors Equipped with the TS93 will Open much Easier than Doors with Rack and Pinion Closers with Track Arms
Door Size
2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)
Maximum Door Opening
110°
Manufacturer Parent
DormaKaba
Closer Hold-Open
false
Sub-Series
TS93-15-PT-689
Closer Type
Track Closer
Hazardous Material
No
Color
Aluminum Painted
Color Code
689/US28
Hold Open
No
Manufacturer Warranty
Limited 25 Year Warranty
Finish code
689
No of inners
1
Product Overview
Grade 1 Surface Applied Door Closer, Size 1-5, Push Side Track, Soffit Mounted (Push Side), Aluminum Painted Finish
