30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- It produces no squeaking sound even during the changes in weather
- The hinge plate has rounded corner and does not harm the material
- It comes with pre-drilled holes at alternate positions to provide better support
- The finishes are good enough to resist stain and can be cleaned easily
Corners
1/4" Radius Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
3.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
3
Quantity
2, 1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R4
Corner
1/4" Radius
Dimensions
Width: 3.5 inches
Color
Satin Nickel
Size
3-1/2" Height X 1/4" Radius
HingeTipStyle
Flat Tip
Height
3-1/2
Width
3-1/2
Finish
US15
Material
Steel
Configuration
Hinges
Adjustable
Yes
Hinge Mount
Full Inset
Manufacturer Warranty
3 Year Mechanical, 1 Year Finish
Product Class
Residential
Machine Screw
#9 x 1/2
Thickness
0.097
Wood Screw
#9 x 3/4
Self Closing
Yes
Mounting Hardware Included
Yes
Installation Type
Screw
Soft Close
No
Type
Radius Corner
Screws
Wood Screw: #9x3/4" Machine Screw: #9x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 50 lb.; 2 Each Springe Hinge: 70 lb.; 3 Each Springe Hinge: 90 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Hinge Size
3-1/2 x 3-1/2 Inch
Product Material
Steel
Standards
UL Listed
Fastener Size
Machine Screw: 1/2 in x 9; Wood Screw: 3/4 in x 9
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_2
Maximum Door Height
7 ft.
Color Code
619/US15
Dimension
3-1/2" x 3-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
1/4" Radius Corner
Hazardous Material
No
Finish code
US15
No of inners
1
Corner Style
1/4" Radius Corners
Bearing Type
Plain Bearing
Substrate Type
Steel
Product Size
3.5" x 3.5"
Non-Removable Pin
No
Product Dimension
3-1/2" x 3-1/2"
Map Policy
Yes
Product Overview

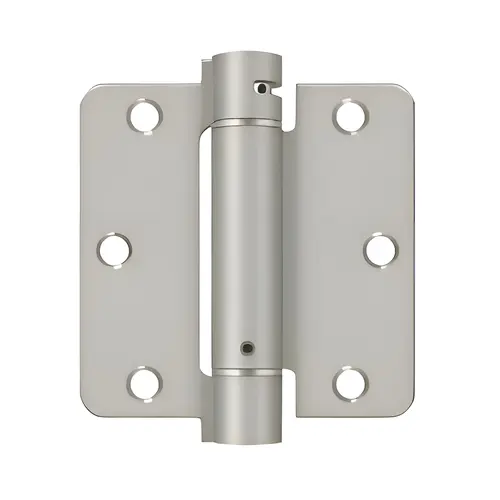

3-1/2" x 3-1/2" x 1/4" Spring Hinge
Deltana self-closing, Spring Hinges are Adjustable and come in an array of fine finishes.
- U/M (Unit of Measure): each - (Price displayed is per unit)
- Wood Screw: #9 x 3/4
- Machine Screw: #9 x 1/2
- Thickness: 0.097
- Material: Steel
