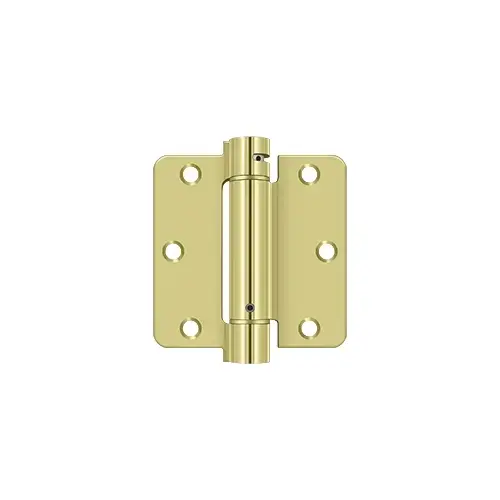

Deltana DSH35R43 3-1/2" x 3-1/2" x 1/4" Spring Hinge in Polished Brass
Item #: DSH35R43 by Deltana
UPC #: 760923539413
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- It produces no squeaking sound even during the changes in weather
- The hinge plate has rounded corner and does not harm the material
- It comes with pre-drilled holes at alternate positions to provide better support
- The finishes are good enough to resist stain and can be cleaned easily
Corners
1/4" Radius Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
3.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
3
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R4
Corner
1/4" Radius
Dimensions
Width: 3.5 inches
Size
3-1/2" Height X 1/4" Radius
HingeTipStyle
Flat Tip
Height
3-1/2
Width
3-1/2
Finish
US3
Material
Steel
Adjustable
Yes
Mounting Hardware Included
Yes
Product Class
Residential
Self Closing
Yes
Configuration
Hinges
Soft Close
No
Machine Screw
#9 x 1/2
Thickness
0.097
Wood Screw
#9 x 3/4
Manufacturer Warranty
3 Year Mechanical, 1 Year Finish
Hinge Mount
Full Inset
Installation Type
Screw
Type
Radius Corner
Screws
Wood Screw: #9x3/4" Machine Screw: #9x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 50 lb.; 2 Each Springe Hinge: 70 lb.; 3 Each Springe Hinge: 90 lb.
Maximum Door Width
3 ft.
Finish Description
Bright Polished Brass
Finish Family
Polished Brass
Hinge Size
3-1/2 x 3-1/2 Inch
Product Material
Steel
Standards
UL Listed
Fastener Size
Machine Screw: 1/2 in x 9; Wood Screw: 3/4 in x 9
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_2
Maximum Door Height
7 ft.
Color Code
605/US3
Dimension
3-1/2" x 3-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
1/4" Radius Corner
Hazardous Material
No
Finish code
US3
No of inners
1
Product Overview
Deltana self-closing, spring hinges are adjustable and come in an array of fine finishes.
