30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel material with a Antique Brass finish, suitable for residential and commercial door hardware applications.
- Measures 3-1/2" x 3-1/2" with a 0.097" thickness, designed for standard door mounting requirements.
- Features 1/4" radius corners and a plain bearing type, facilitating smooth operation in door hinge setups.
- Self-closing spring hinge design is adjustable, allowing for control over the closing force of the door.
- Includes No.9 x 3/4" wood screws and No.9 x 1/2" machine screws for installation on various door substrates.
- Designed for use in commercial and residential door hardware, providing a functional component for door systems.
- Steel substrate construction ensures a consistent build for door hinge applications in various environments.
Corners
1/4" Radius Corner
Function
Hinge
Gauge
0.097
Hinge Height
3.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
3
Quantity
2, 1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R4
Corner
1/4" Radius
Dimensions
Width: 3.5 inches
Size
3-1/2" Height X 1/4" Radius
HingeTipStyle
Flat Tip
Height
3-1/2
Width
3-1/2
Finish
US5
Material
Steel
Manufacturer Warranty
3 Year Mechanical, 1 Year Finish
Product Class
Residential
Soft Close
No
Installation Type
Screw
Adjustable
Yes
Machine Screw
#9 x 1/2
Thickness
0.097
Wood Screw
#9 x 3/4
Configuration
Hinges
Hinge Mount
Full Inset
Mounting Hardware Included
Yes
Self Closing
Yes
Type
Radius Corner
Screws
Wood Screw: #9x3/4" Machine Screw: #9x1/2"
Pack Size
1
Dimension
3-1/2" x 3-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
1/4" Radius Corner
Hazardous Material
No
Finish code
US5
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
1/4" Radius Corners
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
3.5" x 3.5"
Non-Removable Pin
No
Product Dimension
3-1/2" x 3-1/2"
Map Policy
Yes
Product Overview

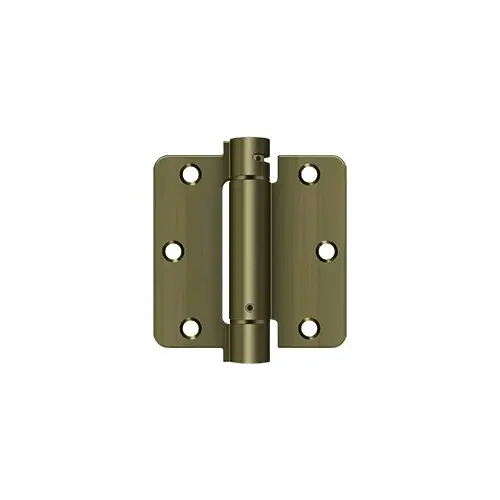

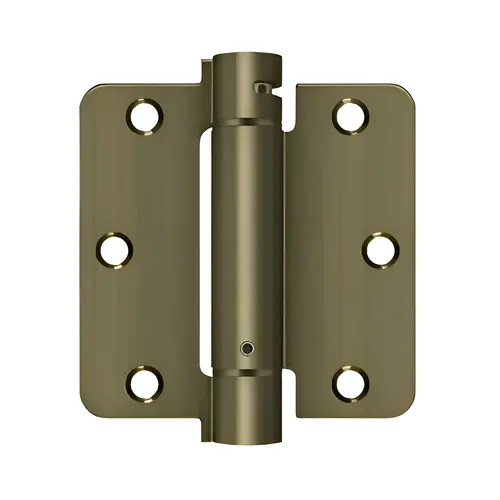

The 3-1/2" x 3-1/2" x 1/4" Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel, this hinge provides a functional solution for door movement. It features a 1/4" radius corner design and a plain bearing mechanism. The hinge measures 3-1/2" x 3-1/2" with a thickness of 0.097". This spring hinge is adjustable, allowing for control over the closing action of the door. It is compatible with various door types and is supplied with No.9 x 3/4" wood screws and No.9 x 1/2" machine screws for installation. The finish is Antique Brass, providing a consistent appearance for door hardware setups. This hinge does not feature a non-removable pin. It is intended for use on standard interior or exterior doors where self-closing functionality is required. The steel substrate ensures structural consistency for door hardware installations in various environments, and the included fasteners allow for immediate mounting to wood or metal frames.
