Features
- Constructed from steel material with a Brushed Brass finish for use in residential and commercial door hardware applications.
- Measures 3-1/2" x 3-1/2" with a thickness of 0.097", suitable for standard door hinge installations.
- Features 5/8" radius corners and a plain bearing mechanism for consistent door operation.
- Designed as a self-closing spring hinge that is adjustable to control the closing speed of the door.
- Includes No.9 x 3/4" wood screws and No.9 x 1/2" machine screws for secure mounting to door frames.
- Suitable for commercial and residential door hardware, providing a functional component for door movement.
- The hinge is non-removable pin compatible and designed for standard door mounting requirements.
Corners
5/8" Radius Corner
Function
Hinge
Gauge
0.097
Hinge Height
3.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Height
3-1/2
Width
3-1/2
Thickness
0.097
Application
R5
Corner
5/8" Radius
Dimensions
Width: 3.5 inches
Color
Satin Brass
Size
3-1/2" Height x 5/8" Radius
Finish
US4
Material
Steel
Hinge Mount
Full Inset
Machine Screw
#9 x 1/2
Wood Screw
#9 x 3/4
Installation Type
Screw
Mounting Hardware Included
Yes
Adjustable
Yes
Soft Close
No
Product Class
Residential
Self Closing
Yes
Configuration
Hinges
Manufacturer Warranty
3 Year Mechanical, 1 Year Finish
Pack Size
1
Screws
Wood Screw: #9x3/4" Machine Screw: #9x1/2"
Type
Radius Corner
Dimension
3-1/2" x 3-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US4
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
5/8" Radius Corners
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
3.5" x 3.5"
Non-Removable Pin
No
Product Dimension
3-1/2" x 3-1/2"
Map Policy
Yes
Product Overview

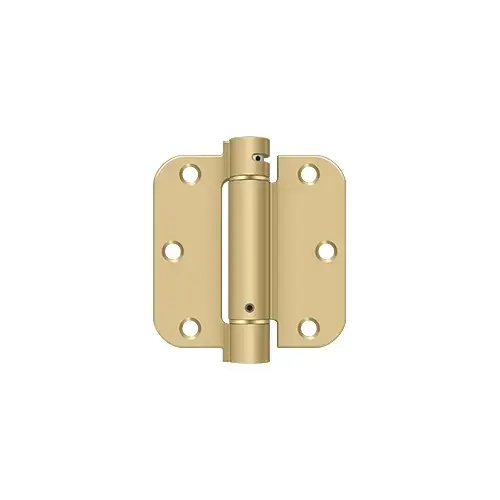

The 3-1/2" x 3-1/2" x 5/8" Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel, this hinge provides a functional solution for door movement. It features a 5/8" radius corner design and a plain bearing mechanism. The hinge measures 3-1/2" x 3-1/2" with a thickness of 0.097". It is adjustable, allowing for control over the closing action of the door. The package includes No.9 x 3/4" wood screws and No.9 x 1/2" machine screws for installation. This hinge is finished in Brushed Brass, providing a neutral aesthetic suitable for various door hardware setups.
