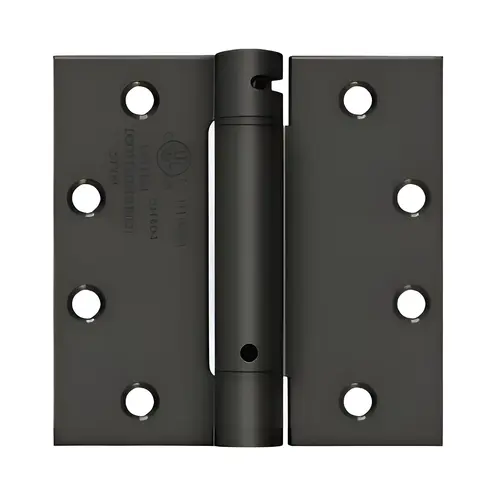

Deltana DSH45U10B 4-1/2" X 4-1/2" Spring Hinge, Steel Material, Square Corner, UL Listed, Oil-Rubbed Bronze Finish
Item #: DSH45U10B by Deltana
Brand: Deltana
UPC #: 760923569038
See reviewsSee reviews
In Stock
$24.08
32.10 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 643 units available
Finish: Oil-rubbed Bronze
Size: 4 1/2" Height X 4 1/2" Width
4 1/2" Height X 4 1/2" Width
4-1/2" Height X 4-1/2" Width
5/8" Radius
Corners: Square Corner
5/8" Radius Corner
Square Corner
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an oil-rubbed bronze finish, providing a functional component for residential and commercial doors.
- Measures 4-1/2" x 4-1/2" with a 0.134" thickness, featuring square corners and a 3-knuckle design for standard door mounting.
- Designed for mortise installation, this hinge is compatible with standard door configurations and includes necessary mounting hardware.
- Features an adjustable spring mechanism that allows for self-closing functionality, providing controlled door movement.
- Supports door weights of 70 lbs with 1 hinge, 115 lbs with 2 hinges, and 150 lbs with 3 hinges, for doors up to 3 ft. wide.
- UL Listed for safety, suitable for applications requiring certified self-closing performance in residential or commercial settings.
- Includes No.12 x 1-1/4" wood screws and No.12 x 1/2" machine screws, with a 1-year finish and 3-year mechanical warranty.
Corners
Square Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
4.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
4.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Height
4-1/2
Width
4-1/2
Application
Standard
Corner
Square
Dimensions
Width: 4.5 inches
Color
Oil Rubbed Bronze
Size
4-1/2" Height X 4-1/2" Width
Finish
US10B
Material
Steel
Product Class
Residential
Adjustable
Yes
Soft Close
No
Installation Type
Screw
Configuration
Hinges
Self Closing
Yes
Hinge Mount
Full Inset
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Mounting Hardware Included
Yes
Machine Screw
#12 x 1/2"
Options
UL Listed
Thickness
0.134
Wood Screw
#12 x 1-1/4"
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 70 lb.; 2 Each Springe Hinge: 115 lb.; 3 Each Springe Hinge: 150 lb.
Maximum Door Width
3 ft.
Finish Description
Oil Rubbed Dark Bronze
Finish Family
Dark Bronze
Hinge Size
4-1/2 x 4-1/2 Inch
Standards
UL Listed
Fastener Size
Machine Screw: 1-1/4 in x 12; Wood Screw: 1/2 in x 12
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_5
Maximum Door Height
7 ft.
Color Code
613/US10B
Dimension
4-1/2" x 4-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US10B
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4.5" x 4.5"
Non-Removable Pin
No
Product Dimension
4-1/2" x 4-1/2"
Map Policy
Yes
Product Overview
The 4-1/2" x 4-1/2" Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with an oil-rubbed bronze finish, this hinge provides a functional solution for door control. It features a 3-knuckle design with square corners and is intended for mortise mounting. The hinge is UL Listed, meeting safety standards for self-closing performance. It includes an adjustable spring mechanism, allowing for tension control to suit various door requirements. The hinge measures 4-1/2" in height and 4-1/2" in width, with a thickness of 0.134". It is compatible with doors up to 7 ft. in height and 3 ft. in width. Load capacity varies by quantity: 1 hinge supports 70 lbs, 2 hinges support 115 lbs, and 3 hinges support 150 lbs. The hinge is supplied with No.12 x 1-1/4" wood screws and No.12 x 1/2" machine screws for installation. It features a plain bearing and a spring pin configuration. The product includes a 1-year finish warranty and a 3-year mechanical warranty.
