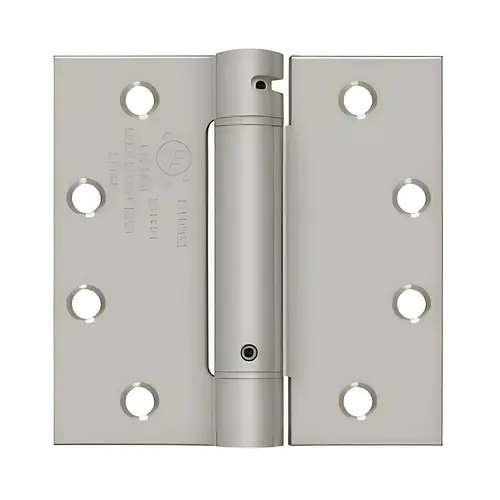

Deltana DSH45U15 4-1/2" X 4-1/2" Spring Hinge, Steel Material, Square Corner Design, UL Listed, 0.134" Thickness, Satin Nickel Finish
Item #: DSH45U15 by Deltana
Brand: Deltana
UPC #: 760923569045
See reviewsSee reviews
In Stock
$24.08
32.10 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 636 units available
Finish: Brushed Nickel
Size: 4 1/2" Height X 4 1/2" Width
4 1/2" Height X 4 1/2" Width
4-1/2" Height X 4-1/2" Width
5/8" Radius
Corners: Square Corner
5/8" Radius Corner
Square Corner
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a Satin Nickel finish, this spring hinge is designed for residential and commercial door applications.
- Measures 4-1/2" in height and 4-1/2" in width with a material thickness of 0.134" for standard door installations.
- Features a mortise mounting type with an arc hole pattern consisting of 8 holes, compatible with standard door frames.
- Equipped with a 3-knuckle design and a spring pin mechanism that allows for adjustable self-closing door operation.
- UL Listed for safety, ensuring compliance with requirements for certified self-closing performance in various environments.
- Designed for full inset door configurations, suitable for both residential and commercial door hardware systems.
- Includes No.12 x 1-1/4" wood screws and No.12 x 1/2" machine screws for secure installation on doors and frames.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
4.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Dimensions
Width: 4.5 inches
Color
Satin Nickel
Size
4-1/2" Height X 4-1/2" Width
Application
Standard
Corner
Square
HingeGrade
Commercial
Width
4-1/2
Height
4-1/2
Finish
US15
Material
Steel
Machine Screw
#12 x 1/2"
Options
UL Listed
Thickness
0.134
Wood Screw
#12 x 1-1/4"
Adjustable
Yes
Soft Close
No
Product Class
Residential
Mounting Hardware Included
Yes
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Installation Type
Screw
Self Closing
Yes
Hinge Mount
Full Inset
Configuration
Hinges
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4-1/2" x 4-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US15
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4.5" x 4.5"
Non-Removable Pin
No
Product Dimension
4-1/2" x 4-1/2"
Map Policy
Yes
Product Overview
The 4-1/2" x 4-1/2" Spring Hinge, UL Listed in Brushed Nickel is a self-closing hinge designed for residential and commercial door applications. Constructed from steel, this hinge features a square corner design and a 3-knuckle configuration. It is a mortise-mount hinge with an arc hole pattern containing 8 holes. The hinge measures 4-1/2" in height and 4-1/2" in width, with a thickness of 0.134". This adjustable spring hinge provides self-closing functionality for doors, suitable for various interior and exterior setups. It is UL Listed, meeting safety standards for certified self-closing performance. The hinge includes both wood screws measuring No.12 x 1-1/4" and machine screws measuring No.12 x 1/2" for installation. It features a spring pin and is designed for full inset mounting. The finish is Satin Nickel, providing a neutral aesthetic for door hardware.
