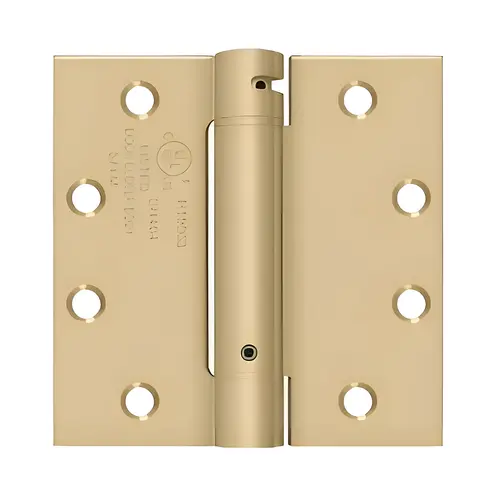

Deltana DSH45U4 4-1/2" X 4-1/2" Spring Hinge, Steel Material, Square Corner Design, UL Listed, 3 Knuckles, Brushed Brass Finish
Item #: DSH45U4 by Deltana
Brand: Deltana
UPC #: 760923569083
See reviewsSee reviews
In Stock
$20.85
27.80 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 518 units available
Finish: Brushed Brass
Size: 4 1/2" Height X 4 1/2" Width
4 1/2" Height X 4 1/2" Width
4-1/2" Height X 4-1/2" Width
5/8" Radius
Corners: Square Corner
5/8" Radius Corner
Square Corner
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a brushed brass finish, this hinge is designed for residential and commercial door hardware systems.
- Features dimensions of 4-1/2" height and 4-1/2" width with a 0.134" thickness, suitable for standard door installations.
- Designed for mortise mounting with a square corner style and arc hole pattern, compatible with full inset door configurations.
- Equipped with a spring pin mechanism and 3 knuckles, providing adjustable self-closing functionality for door control.
- UL Listed for safety, ensuring certified performance in applications where self-closing door hardware is required.
- Suitable for standard door applications in both residential and commercial settings, providing reliable door movement.
- Includes 8 mounting holes and comes with No.12 x 1-1/4" wood screws and No.12 x 1/2" machine screws for installation.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
4.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Height
4-1/2
Width
4-1/2
Application
Standard
Corner
Square
Dimensions
Width: 4.5 inches
Color
Satin Brass
Size
4-1/2" Height X 4-1/2" Width
Finish
US4
Material
Steel
Product Class
Residential
Machine Screw
#12 x 1/2"
Options
UL Listed
Thickness
0.134
Wood Screw
#12 x 1-1/4"
Soft Close
No
Hinge Mount
Full Inset
Installation Type
Screw
Self Closing
Yes
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Configuration
Hinges
Mounting Hardware Included
Yes
Adjustable
Yes
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4-1/2" x 4-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US4
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4.5" x 4.5"
Non-Removable Pin
No
Product Dimension
4-1/2" x 4-1/2"
Map Policy
Yes
Product Overview
The 4-1/2" x 4-1/2" Spring Hinge, UL Listed is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with a brushed brass finish, this hinge provides a functional solution for door control. It features a mortise mounting type with a square corner design and an arc hole pattern. The hinge measures 4-1/2" in height and 4-1/2" in width, with a thickness of 0.134". It is configured with 3 knuckles and a spring pin mechanism. This adjustable hinge is UL Listed, meeting safety standards for self-closing performance. It includes 8 holes for installation and comes with wood screws measuring No.12 x 1-1/4" and machine screws measuring No.12 x 1/2". The hinge is designed for full inset mounting and is suitable for standard door applications. The brushed brass finish provides a consistent aesthetic for various door hardware setups.
