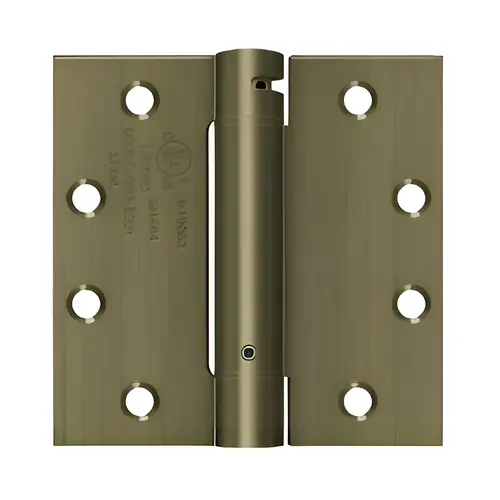

Deltana DSH45U5 4-1/2" X 4-1/2" Spring Hinge, Steel Material, Square Corner, Adjustable Tension, UL Listed, Antique Brass Finish
Item #: DSH45U5 by Deltana
Brand: Deltana
UPC #: 760923569021
See reviewsSee reviews
In Stock
$24.08
32.10 /eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 537 units available
Finish: Antique Brass
Size: 4 1/2" Height X 4 1/2" Width
4 1/2" Height X 4 1/2" Width
4-1/2" Height X 4-1/2" Width
5/8" Radius
Corners: Square Corner
5/8" Radius Corner
Square Corner
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an Antique Brass finish, providing a functional and classic appearance for door hardware systems.
- Measures 4-1/2" in height and 4-1/2" in width with a 0.134" thickness, designed for standard door frame installations.
- Features a square corner design and 3-knuckle configuration, suitable for mortise mounting in residential and commercial doors.
- Equipped with an adjustable spring mechanism that allows for tension control to manage door closing speed and force.
- UL Listed for safety, ensuring certified self-closing performance in applications where fire or safety compliance is necessary.
- Designed for full inset door mounting, providing a standard solution for various interior and exterior door applications.
- Includes mounting hardware consisting of No.12 x 1-1/4" wood screws and No.12 x 1/2" machine screws for installation.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
4.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
Standard
Corner
Square
Dimensions
Width: 4.5 inches
Size
4-1/2" Height X 4-1/2" Width
HingeGrade
Commercial
Height
4-1/2
Width
4-1/2
Finish
US5
Material
Steel
Mounting Hardware Included
Yes
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Self Closing
Yes
Soft Close
No
Installation Type
Screw
Configuration
Hinges
Machine Screw
#12 x 1/2"
Options
UL Listed
Thickness
0.134
Wood Screw
#12 x 1-1/4"
Adjustable
Yes
Product Class
Residential
Hinge Mount
Full Inset
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4-1/2" x 4-1/2"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US5
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4.5" x 4.5"
Non-Removable Pin
No
Product Dimension
4-1/2" x 4-1/2"
Map Policy
Yes
Product Overview
The 4-1/2" x 4-1/2" Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with an Antique Brass finish, this hinge provides a functional solution for door control. It features a square corner design and a 3-knuckle configuration, suitable for standard mortise mounting. The hinge is UL Listed, meeting safety standards for self-closing performance. It includes an adjustable spring mechanism, allowing for tension control to suit various door weights and closing requirements. The hinge measures 4-1/2" in height and 4-1/2" in width, with a thickness of 0.134". It is designed for full inset mounting and includes both wood screws (No.12 x 1-1/4") and machine screws (No.12 x 1/2") for installation. This hinge is intended for standard door applications where reliable, self-closing operation is required.
