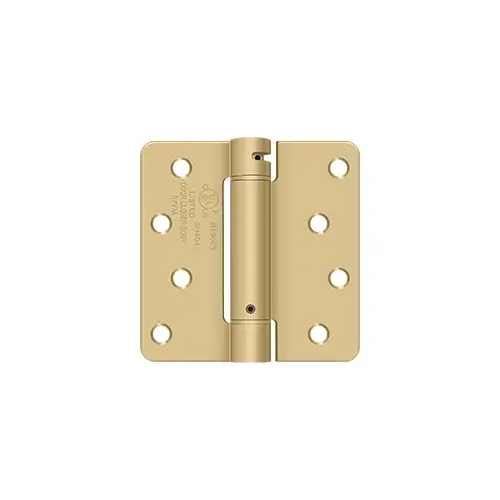

4" x 4" x 1/4" Spring Hinge, UL Listed in Brushed Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Deltana DSH4R44 4" x 4" x 1/4" Spring Hinge, UL Listed in Brushed Brass

Item #: DSH4R44 by Deltana

UPC #: 760923549481

See reviewsSee reviews
See reviews summary
In Stock

$15.90

/each
SAVE UP TO 1.59
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 937 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Concealed lever prevents the damage to the hinge
  • The adjustable hinge is perfect for all types of furniture
  • It can resist the scratch very well even if it is used roughly

Corners

1/4" Radius Corner

Function

Hinge

Gauge

0.097

Hinge Height

4

Hinge Strength

Residential

Hinge Type

Spring Hinge

Hinge Width

4

Hole Pattern

Zig Zag

Mounting Type

Mortise

Number of Holes

8

Number of Knuckles

3

Removable Pin

Without Removable Pin

Screw Type

Wood

Theme

Traditional

HingeGrade

Commercial

Height

4

Width

4

Size

1/4" Radius

Color

Satin Brass

Dimensions

Width: 4 inches

Application

R4

Corner

1/4" Radius

Finish

US4

Material

Steel

Machine Screw

#10 x 1/2

Options

UL Listed

Thickness

0.097

Wood Screw

#10 x 1

Type

Radius Corner

Screws

Wood Screw: #10x1" Machine Screw: #10x1/2"

Pack Size

1

Maximum Door Height

7 ft.

Color Code

606/US4

Maximum Door Weight

1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.

Maximum Door Width

3 ft.

Finish Description

Satin Brass

Finish Family

Satin Brass

Hinge Size

4 x 4 Inch

Product Material

Steel

Standards

UL Listed

Hinge Corner

1/4 Inch Radius Corner

Function Family

Hinge/Pivot

Features

Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes

Product Type

Hinge/Pivot

Series

DSH Series Hinges

Manufacturer Parent

Deltana

Sub-Series

HP_Spring_Hinges_Deltana_6

Dimension

4" x 4"

Pin Type

Spring Pin

Manufacturer Warranty

Limited 1 Year Mechanical and 1 Year Finish Warranty

Bearing Type

Spring Bearing

Knuckles

3 Knuckles

Corner Type

1/4" Radius Corner

Hazardous Material

No

Finish code

US3 x US4

No of inners

1

Product Overview
Single Action Spring Hinge, 4" x 4" x 1/4" Round Corners, UL Listed, 0.097 Thickness, US4 Satin Brass
