Features
- Constructed from steel with a satin nickel finish, providing a functional component for residential and commercial door hardware.
- Measures 4" x 4" with a 0.097 gauge thickness and a 5/8" radius corner, suitable for standard door mortise installations.
- Designed for full inset mounting with a 3-knuckle configuration and a zig-zag hole pattern for stable door attachment.
- Features an adjustable spring mechanism that allows for tension control to meet specific door closing requirements.
- Supports a maximum door weight of 60 lbs per hinge, up to 110 lbs when using 3 hinges, for doors up to 3 ft wide and 7 ft high.
- UL listed for safety and compliance, making it suitable for various commercial and residential door hardware applications.
- Includes wood screws (No.10 x 1") and machine screws (No.10 x 1/2") for a complete installation process.
Corners
5/8" Radius Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Hinge Type
Spring
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Application
R5
Corner
5/8" Radius
Dimensions
Width: 4 inches
Color
Satin Nickel
Size
5/8" Radius
Thickness
0.097
Height
4
Width
4
Finish
Brushed Nickel
Material
Steel
Product Class
Residential
Self Closing
Yes
Mounting Hardware Included
Yes
Configuration
Hinges
Soft Close
No
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Installation Type
Screw
Hinge Mount
Full Inset
Machine Screw
#10 x 1/2
Options
UL Listed
Adjustable
Yes
Wood Screw
#10 x 1
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Hinge Size
4 x 4 Inch
Product Material
Steel
Standards
UL Listed
Fastener Size
Machine Screw: 1 in x 10; Wood Screw: 1/2 in x 10
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_7
Maximum Door Height
7 ft.
Color Code
619/US15
Dimension
4" x 4"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US15
No of inners
1
Corner Style
5/8" Radius Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

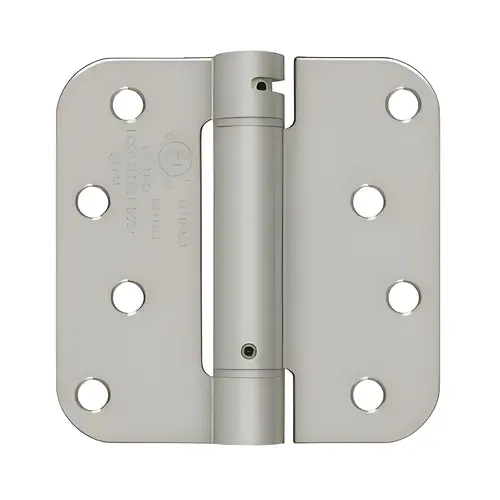

The 4" x 4" x 5/8" Spring Hinge, UL Listed is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with a satin nickel finish, this hinge features a 5/8" radius corner and a 3-knuckle design. It is a mortise-mount hinge with a 0.097 gauge thickness and a zig-zag hole pattern. The hinge is adjustable, allowing for tension control to suit various door weights. It supports a maximum door weight of 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges, with a maximum door width of 3 ft and a maximum door height of 7 ft. This UL-listed hinge includes wood screws (No.10 x 1") and machine screws (No.10 x 1/2") for installation. It is designed for full inset mounting and provides a traditional aesthetic for door hardware. The product includes a 1-year finish warranty and a 3-year mechanical warranty, reflecting the manufacturing standards for this DSH series hinge.
