Features
- Constructed from steel with an antique nickel finish, this spring hinge provides a traditional aesthetic for door hardware.
- Measures 4" x 4" with a 5/8" radius corner and a 0.097" thickness, suitable for standard door frame preparations.
- Designed for full inset mounting with a mortise installation type, featuring 8 holes in a zig-zag pattern for secure attachment.
- Self-closing and adjustable mechanism allows for controlled door operation, supported by a 3-knuckle design and spring pin.
- Supports varying door weights: 60 lb. for 1 hinge, 85 lb. for 2 hinges, and 110 lb. for 3 hinges, for doors up to 3 ft. wide.
- UL listed for safety, this hinge is suitable for commercial and residential door hardware applications up to 7 ft. in height.
- Includes mounting hardware consisting of No.10 x 1" wood screws and No.10 x 1/2" machine screws for immediate installation.
HingeGrade
Commercial
Thickness
0.097
Height
4
Width
4
Application
R5
Corner
5/8" Radius
Dimensions
Width: 4 inches
Size
5/8" Radius
Finish
US15A
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Installation Type
Screw
Number of Knuckles
3
Soft Close
No
Mounting Type
Mortise
Number of Holes
8
Removable Pin
Without Removable Pin
Product Class
Residential
Gauge
0.097
Hinge Mount
Full Inset
Configuration
Hinges
Self Closing
Yes
Adjustable
Yes
Hinge Type
Spring Hinge
Mounting Hardware Included
Yes
Screw Type
Wood
Hole Pattern
Zig Zag
Quantity
1
Function
Hinge
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Wood Screw
#10 x 1
Corners
5/8" Radius Corner
Theme
Traditional
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Height
7 ft.
Color Code
620/US15A
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Nickel Blackened
Finish Family
Antique Nickel
Hinge Size
4 x 4 Inch
Product Material
Steel
Standards
UL Listed
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_7
Dimension
4" x 4"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US15A
No of inners
1
Corner Style
5/8" Radius Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

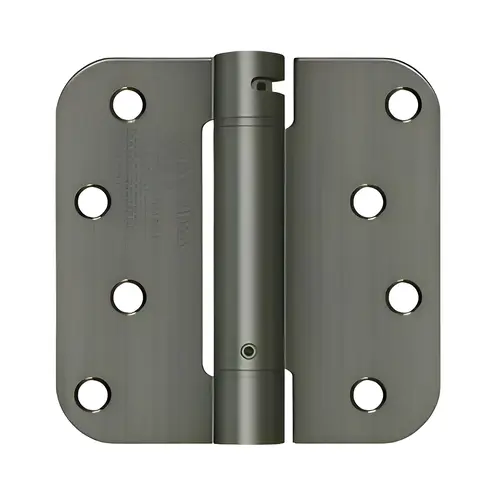

The 4" x 4" x 5/8" Spring Hinge, UL Listed in Antique Nickel is a commercial-grade spring hinge designed for door applications. Constructed from steel with an antique nickel finish, this hinge features a 5/8" radius corner and a 4" x 4" size. It is designed for full inset mounting and utilizes a mortise installation type. The hinge includes 3 knuckles and a non-removable spring pin. It is self-closing and adjustable, allowing for controlled door movement. The hinge has a thickness of 0.097" and features a zig-zag hole pattern with 8 holes. It is compatible with doors up to 7 ft. in height and 3 ft. in width. Load capacity varies by quantity: 1 hinge supports 60 lb., 2 hinges support 85 lb., and 3 hinges support 110 lb. The package includes wood screws (No.10 x 1") and machine screws (No.10 x 1/2") for installation. This hinge is UL listed, meeting standard safety requirements for door hardware.
