Features
- Constructed from steel with a satin chrome finish, providing a functional component for residential and commercial door hardware.
- Measures 4" x 4" with a 0.097" thickness and 5/8" radius corners, designed for standard mortise door installations.
- Features a self-closing mechanism with adjustable tension, suitable for doors up to 7 ft. high and 3 ft. wide.
- Supports varying door weights, including 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges.
- Includes 8 holes in a zig-zag pattern and comes with No.10 x 1" wood screws and No.10 x 1/2" machine screws for mounting.
- Designed as a 3-knuckle spring hinge with a non-removable spring pin for consistent operation in traditional door configurations.
- UL listed for safety compliance, suitable for use in various commercial and residential door hardware applications.
HingeGrade
Commercial
Height
4
Width
4
Thickness
0.097
Application
R5
Corner
5/8" Radius
Dimensions
Width: 4 inches
Color
Satin Chrome
Size
5/8" Radius
Finish
US26D
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Hinge Type
Spring Hinge
Product Class
Residential
Corners
5/8" Radius Corner
Number of Holes
8
Removable Pin
Without Removable Pin
Quantity
1
Installation Type
Screw
Function
Hinge
Hole Pattern
Zig Zag
Mounting Type
Mortise
Mounting Hardware Included
Yes
Gauge
0.097
Soft Close
No
Number of Knuckles
3
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Self Closing
Yes
Adjustable
Yes
Configuration
Hinges
Screw Type
Wood
Hinge Mount
Full Inset
Wood Screw
#10 x 1
Theme
Traditional
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Height
7 ft.
Color Code
626/US26D
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Chrome
Finish Family
Satin Chrome
Hinge Size
4 x 4 Inch
Product Material
Steel
Standards
UL Listed
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_7
Dimension
4" x 4"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US26D
No of inners
1
Corner Style
5/8" Radius Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

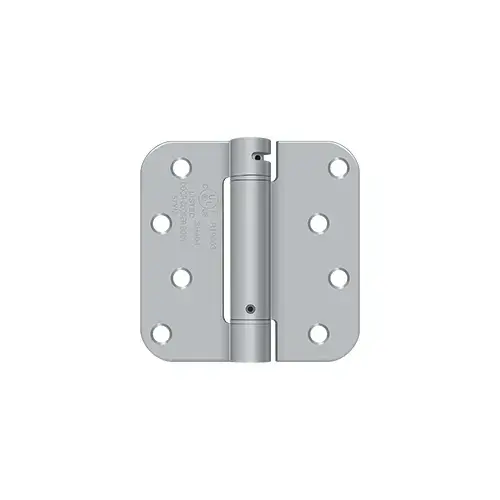

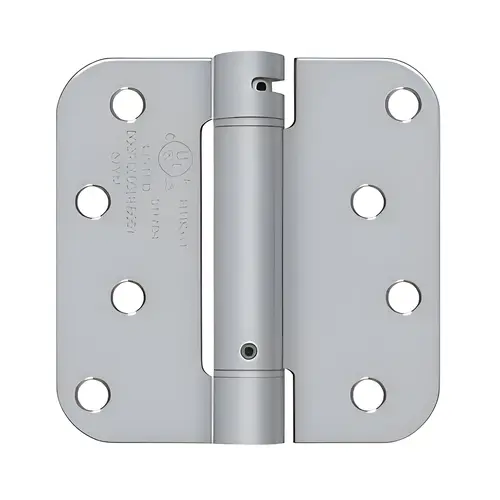

The 4" x 4" x 5/8" Spring Hinge, UL Listed in Brushed Chrome is a single action spring hinge designed for residential and commercial door applications. Constructed from steel with a satin chrome finish, this hinge is suitable for traditional door setups. It features a 5/8" radius corner and a 0.097" thickness. The hinge is designed for mortise mounting and includes 8 holes in a zig-zag pattern. It is a self-closing hinge with adjustable tension, allowing for controlled door movement. The hinge has 3 knuckles and a non-removable spring pin. It is compatible with doors up to 7 ft. in height and 3 ft. in width. Load capacity varies by quantity: 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges. The hinge comes with No.10 x 1" wood screws and No.10 x 1/2" machine screws for installation. It is UL listed, meeting standard safety requirements. The satin chrome finish provides a neutral aesthetic for various interior environments.
