Features
- Constructed from steel with a brushed brass finish, providing a functional component for door hardware systems.
- Measures 4" x 4" with a 0.097" thickness and a 5/8" radius corner style for standard door frame preparation.
- Designed for mortise mounting on doors, featuring a full inset hinge mount and a 3-knuckle configuration.
- Includes adjustable spring tension for self-closing operation, suitable for various door control requirements.
- Features a zig-zag hole pattern with 8 holes, compatible with the included No.10 x 1" wood and No.10 x 1/2" machine screws.
- Classified as a commercial-grade spring hinge, UL listed for use in residential and commercial door applications.
- Supplied as a single unit, this hinge is designed for consistent performance in traditional door hardware setups.
HingeGrade
Commercial
Height
4
Width
4
Thickness
0.097
Application
R5
Corner
5/8" Radius
Dimensions
Width: 4 inches
Color
Satin Brass
Size
5/8" Radius
Finish
US4
Material
Steel
Corners
5/8" Radius Corner
Soft Close
No
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Adjustable
Yes
Hinge Mount
Full Inset
Number of Holes
8
Function
Hinge
Product Class
Residential
Configuration
Hinges
Quantity
1
Number of Knuckles
3
Removable Pin
Without Removable Pin
Installation Type
Screw
Screw Type
Wood
Hole Pattern
Zig Zag
Machine Screw
#10 x 1/2
Options
UL Listed
Wood Screw
#10 x 1
Mounting Type
Mortise
Gauge
0.097
Mounting Hardware Included
Yes
Hinge Type
Spring Hinge
Theme
Traditional
Self Closing
Yes
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4" x 4"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US4
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
5/8" Radius Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

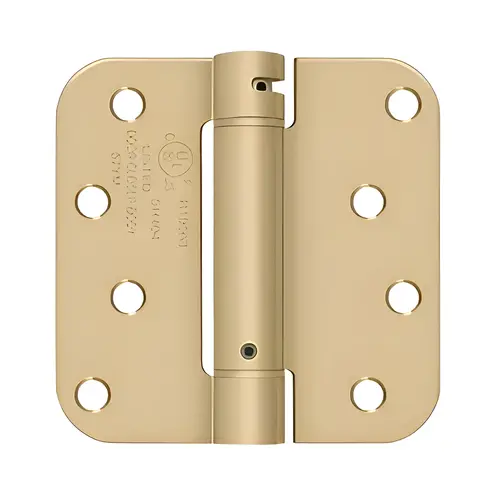

The 4" x 4" x 5/8" Spring Hinge, UL Listed in Brushed Brass is a commercial-grade spring hinge designed for door applications. Constructed from steel, this hinge features a 5/8" radius corner and a 3-knuckle configuration. It is designed for mortise mounting and utilizes a zig-zag hole pattern with 8 holes for installation. The hinge includes both No.10 x 1" wood screws and No.10 x 1/2" machine screws. With a thickness of 0.097", this spring hinge is adjustable and provides self-closing functionality. It is UL listed, indicating it meets specific safety standards for door hardware. The hinge is suitable for full inset mounting and is designed for residential and commercial use. The brushed brass finish provides a consistent aesthetic for door hardware installations. This hinge is part of the Steel, Stainless Steel, and Spring Hinges series and includes a 1-year finish and 3-year mechanical manufacturer warranty. It is a non-removable pin design, ensuring stability in its application.
