Features
- Constructed from steel with an Antique Brass finish, providing a traditional aesthetic for door hardware.
- Measures 4" x 4" with a 5/8" radius corner and a 0.097" thickness for standard door installations.
- Designed for mortise mounting with a zig-zag hole pattern featuring 8 holes for secure attachment.
- Features a self-closing spring mechanism that is adjustable to suit various door weights and closing requirements.
- Supports door weights up to 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges on doors up to 3' wide.
- UL listed for safety and compliance, suitable for commercial and residential door hardware applications.
- Includes necessary installation hardware, specifically No.10 x 1" wood screws and No.10 x 1/2" machine screws.
Corners
5/8" Radius Corner
Function
Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Hinge Type
Spring
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R5
Corner
5/8" Radius
Dimensions
Width: 4 inches
Size
5/8" Radius
HingeGrade
Commercial
Width
4
Height
4
Thickness
0.097
Finish
Antique Brass
Material
Steel
Product Class
Residential
Mounting Hardware Included
Yes
Installation Type
Screw
Configuration
Hinges
Self Closing
Yes
Manufacturer Warranty
1 Year Finish, 3 Year Mechanical
Hinge Mount
Full Inset
Soft Close
No
Adjustable
Yes
Machine Screw
#10 x 1/2
Options
UL Listed
Wood Screw
#10 x 1
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Height
7 ft.
Color Code
609/US5
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Brass Blackened
Finish Family
Antique Brass
Hinge Size
4 x 4 Inch
Product Material
Steel
Standards
UL Listed
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_7
Dimension
4" x 4"
Pin Type
Spring Pin
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US5
No of inners
1
Corner Style
5/8" Radius Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

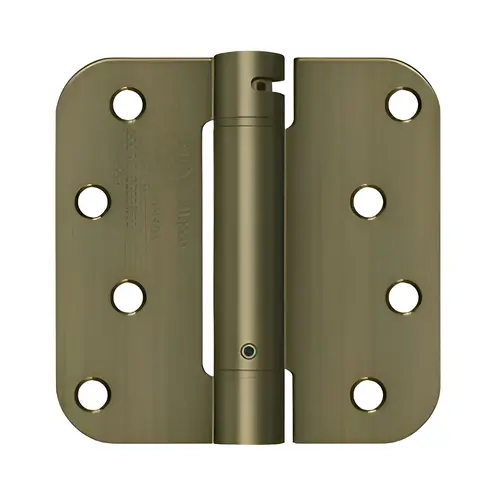

The 4" x 4" x 5/8" Spring Hinge from the DSH Series is a commercial-grade, single-action hinge designed for residential and commercial door applications. Constructed from steel with an Antique Brass finish, this hinge features a 5/8" radius corner and a 0.097" thickness. It is a self-closing spring hinge suitable for doors up to 3 ft wide and 7 ft high. The hinge utilizes a mortise mounting type with a zig-zag hole pattern and 8 holes for installation. It includes both No.10 x 1" wood screws and No.10 x 1/2" machine screws. The hinge is UL listed and features 3 knuckles with a non-removable spring pin. It supports adjustable tension for controlled closing. Load capacity varies by quantity: 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges. This product comes with a 1-year finish warranty and a 3-year mechanical warranty, ensuring reliability for standard door hardware setups.
