Features
- Constructed from stainless steel with a brushed stainless finish, this hinge is designed for residential and commercial door hardware systems.
- Measures 4" in height and 4" in width with a 0.097" thickness, providing a standard size for various door and frame installation requirements.
- Designed for mortise mounting with a square corner style, featuring 8 holes in a zig zag pattern for secure attachment to doors and frames.
- Features a 3-knuckle design with an integrated spring pin mechanism for self-closing functionality in standard door applications.
- UL listed for safety, meeting industry standards for commercial and residential door hardware and fire-rated door installations.
- Adjustable spring tension allows for precise control over the door closing speed, suitable for various environments and door weights.
- Includes No.10 x 1" wood screws and No.10 x 1/2" machine screws for installation, backed by a 1-year mechanical and finish warranty.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
Standard
Corner
Square
Dimensions
Width: 4 inches
Color
Satin Stainless Steel
Size
4" Height X 4" Width
HingeGrade
Commercial
Height
4
Width
4
Finish
US32D
Material
Stainless Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Thickness
0.097
Wood Screw
#10 x 1
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4" x 4"
Pin Type
Spring Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US32D
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

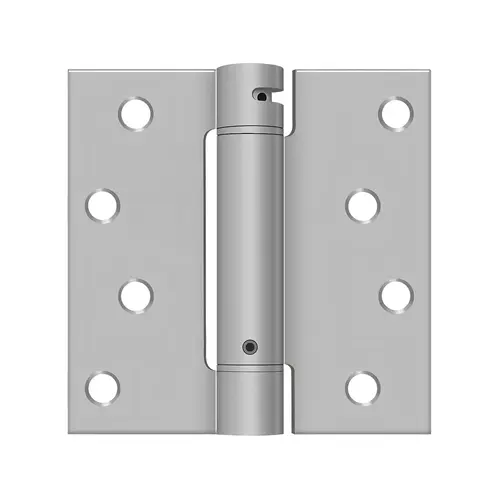

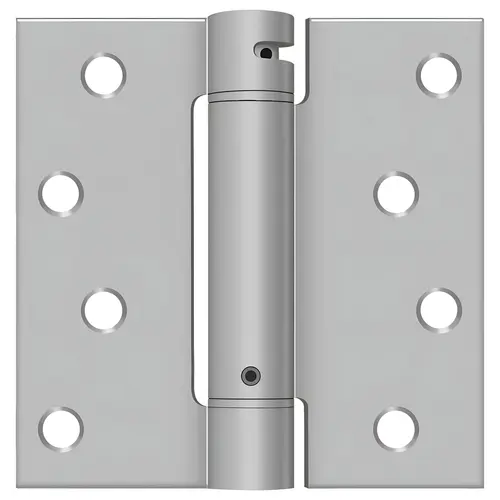

The 4" x 4" Spring Hinge is a self-closing hinge designed for both residential and commercial door applications. Constructed from stainless steel, this hinge features a square corner design and is intended for mortise mounting. It includes 3 knuckles and a zig zag hole pattern with 8 holes for installation. The hinge has a thickness of 0.097" and is UL listed for safety. It comes with No.10 x 1" wood screws and No.10 x 1/2" machine screws. This spring hinge is adjustable to control closing speed, providing flexibility for various door weights and environments. The brushed stainless finish provides a clean aesthetic suitable for various door hardware setups. This hinge is part of the Steel, Stainless Steel, and Spring Hinges series and features a plain bearing type. It is backed by a limited 1-year mechanical and 1-year finish warranty, ensuring reliability for standard door applications. The hinge is designed to resist scratches and maintain its appearance over time, making it a practical choice for high-traffic areas in commercial or residential settings.
