Features
- Constructed from steel with a US15 Satin Nickel finish, providing a functional component for residential and commercial door systems.
- Measures 4" x 4" with a 0.097 gauge thickness and square corner design, suitable for standard mortise-mount door installations.
- Features a 3-knuckle design with a zig zag hole pattern and 8 mounting holes for stable attachment to door frames.
- Equipped with an adjustable spring pin mechanism that allows for controlled self-closing action on standard interior doors.
- Supports a maximum door weight of 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges, up to 3 ft wide and 7 ft high.
- UL listed for safety compliance, suitable for use in residential and commercial environments requiring standard door hardware.
- Includes necessary installation hardware, consisting of No.10 x 1" wood screws and No.10 x 1/2" machine screws for secure mounting.
Corners
Square Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
Standard
Corner
Square
Dimensions
Width: 4 inches
Color
Satin Nickel
Size
4" Height X 4" Width
Width
4
Height
4
HingeGrade
Commercial
Finish
US15
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Thickness
0.097
Wood Screw
#10 x 1
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Hinge Size
4 x 4 Inch
Standards
UL Listed
Fastener Size
Machine Screw: 1 in x 10; Wood Screw: 1/2 in x 10
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_4
Maximum Door Height
7 ft.
Color Code
619/US15
Dimension
4" x 4"
Pin Type
Spring Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US15
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

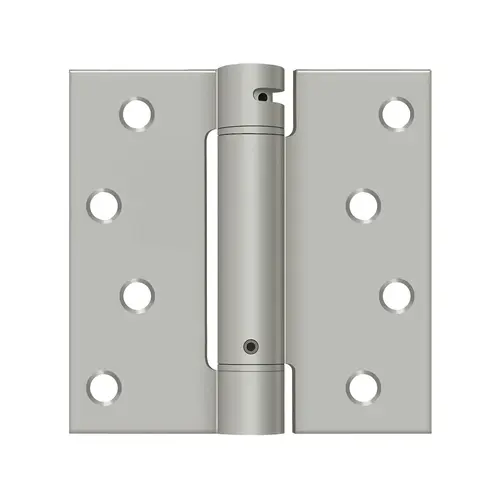

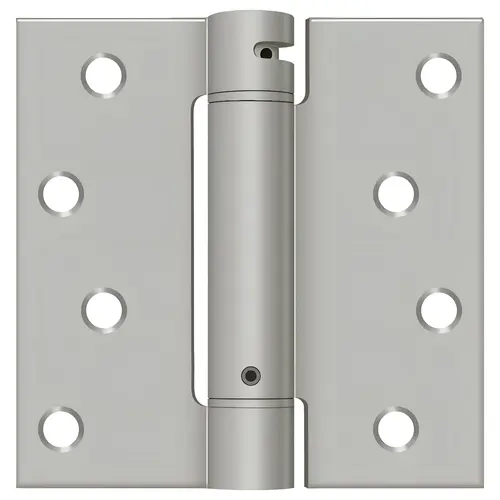

The Single Action Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with a US15 Satin Nickel finish, this hinge provides a functional solution for standard door installations. It features a 4" x 4" size with square corners and a 0.097 gauge thickness. The hinge is designed with 3 knuckles and a zig zag hole pattern, utilizing 8 holes for mounting. It is a mortise-mount hinge that includes both wood screws (No.10 x 1") and machine screws (No.10 x 1/2") for installation. This spring hinge is UL listed, meeting standard safety requirements. It supports a maximum door weight of 60 lbs for 1 hinge, 85 lbs for 2 hinges, and 110 lbs for 3 hinges, with a maximum door width of 3 ft and a maximum door height of 7 ft. The spring pin mechanism allows for adjustable closing tension. This hinge is suitable for various door types, providing a consistent closing action.
