Features
- Constructed from steel with a brushed chrome finish for use in residential and commercial door hardware systems.
- Measures 4" x 4" with a 0.097" thickness, featuring a square corner design for standard door installations.
- Designed for mortise mounting with a zig-zag hole pattern and 8 mounting holes for stable attachment.
- Features a 3-knuckle spring hinge mechanism that provides self-closing functionality for doors.
- UL listed for safety compliance, suitable for various commercial and residential door applications.
- Includes No.10 x 1" wood screws and No.10 x 1/2" machine screws for installation on standard door frames.
- Single action spring hinge design allows for controlled door movement in standard door hardware setups.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Width
4
Height
4
Application
Standard
Corner
Square
Dimensions
Width: 4 inches
Color
Satin Chrome
Size
4" Height X 4" Width
Finish
US26D
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Thickness
0.097
Wood Screw
#10 x 1
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4" x 4"
Pin Type
Spring Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US26D
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

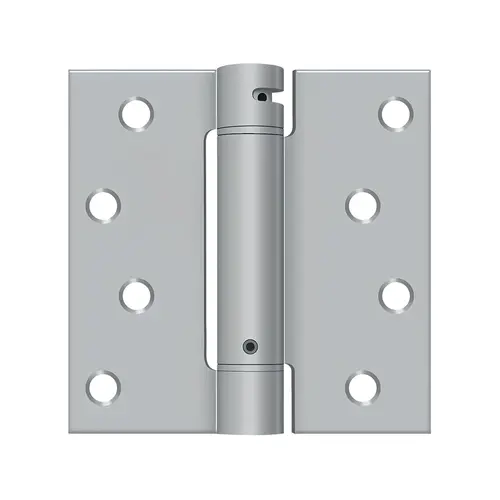

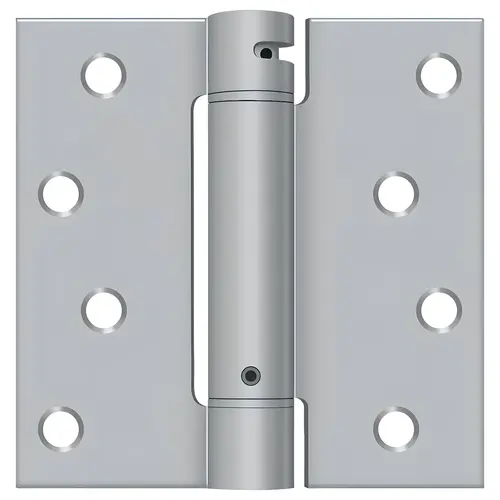

The Single Action Spring Hinge is a self-closing hinge designed for both residential and commercial door applications. Constructed from steel, this hinge features a 4" x 4" size with square corners. It is a spring-loaded hinge with 3 knuckles and a zig-zag hole pattern, suitable for mortise mounting. The hinge has a thickness of 0.097" and includes 8 holes for installation. It comes with No.10 x 1" wood screws and No.10 x 1/2" machine screws. This hinge is UL listed, meeting safety standards for door hardware. The finish is brushed chrome, providing a clean aesthetic for various door types. This commercial-grade hinge is designed for standard applications and includes a limited 1-year mechanical and 1-year finish warranty. The spring pin mechanism allows for adjustable tension, providing control over the closing speed of the door. The hinge is designed to be used in environments where self-closing functionality is required, such as in residential or commercial settings. The steel construction provides a solid foundation for door movement, while the square corner design ensures a flush fit with the door and frame. The hinge is sold as a single unit, making it easy to order the exact quantity needed for your project.
