Features
- Constructed from steel with a brushed brass finish, providing a traditional look for residential and commercial door hardware.
- Features a 4" x 4" dimension with square corners, designed for standard mortise mounting applications.
- UL listed for safety, ensuring compliance with standard door hardware requirements in various building environments.
- Equipped with a spring pin mechanism that allows for adjustable closing tension to suit different door weights and needs.
- Includes 8 holes in a zig zag pattern and 3 knuckles, providing a stable and secure attachment to the door and frame.
- Designed for standard door applications, this single action spring hinge supports consistent closing movement.
- Comes with No.10 x 1" wood screws and No.10 x 1/2" machine screws, facilitating straightforward installation on doors.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Corner
Square
Dimensions
Width: 4 inches
Size
4" Height X 4" Width
Application
Standard
HingeGrade
Commercial
Width
4
Height
4
Finish
US4
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Thickness
0.097
Wood Screw
#10 x 1
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4" x 4"
Pin Type
Spring Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US4
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

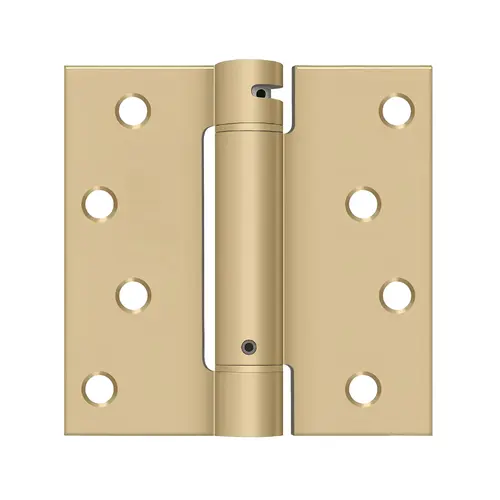

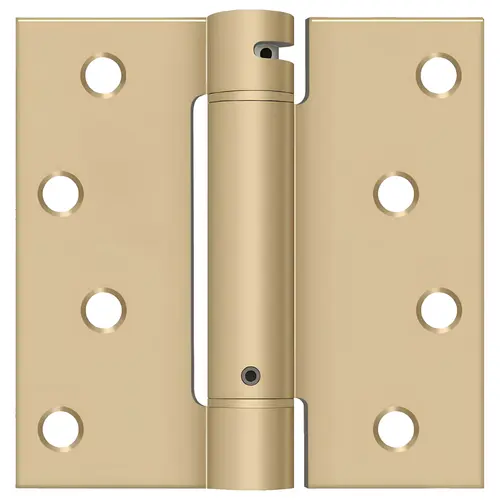

The DSH44 Single Action Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel, this hinge features a 4" x 4" size with square corners, suitable for standard door installations. It is a mortise-mounted hinge with a zig zag hole pattern, featuring 8 holes and 3 knuckles for stable operation. The hinge is UL listed, meeting safety standards for various door setups. It includes a spring pin mechanism that allows for adjustable closing tension. The hinge thickness is 0.097", providing structural support for standard doors. Included with the hinge are No.10 x 1" wood screws and No.10 x 1/2" machine screws for installation. This hinge is finished in brushed brass, offering a traditional aesthetic for interior doors. The design includes a non-removable pin for added security. This product is intended for standard applications where a self-closing function is required.
