30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an antique brass finish, providing a traditional aesthetic for residential and commercial door hardware.
- Measures 4" in height and 4" in width with a 0.097" thickness, designed for standard door installations and consistent performance.
- Features a mortise mounting type with a zig-zag hole pattern containing 8 holes for secure attachment to door frames and doors.
- Designed as a single action spring hinge with 3 knuckles and a plain bearing, facilitating smooth and reliable door movement.
- UL listed for safety compliance, meeting established standards for residential and commercial door hardware applications.
- Includes No.10 x 1" wood screws and No.10 x 1/2" machine screws to facilitate installation on standard door hardware setups.
- Features square corners and a spring pin mechanism, suitable for various door hardware and commercial hinge applications.
Corners
Square Corner
Function
Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Quantity
1
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Width
4
Height
4
Application
Standard
Corner
Square
Dimensions
Width: 4 inches
Size
4" Height X 4" Width
Finish
US5
Material
Steel
Machine Screw
#10 x 1/2
Options
UL Listed
Thickness
0.097
Wood Screw
#10 x 1
Type
Square Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Dimension
4" x 4"
Pin Type
Spring Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Spring Bearing
Knuckles
3 Knuckles
Corner Type
Square Corner
Hazardous Material
No
Finish code
US5
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Certifications
UL Listed
Bearing Type
Plain Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

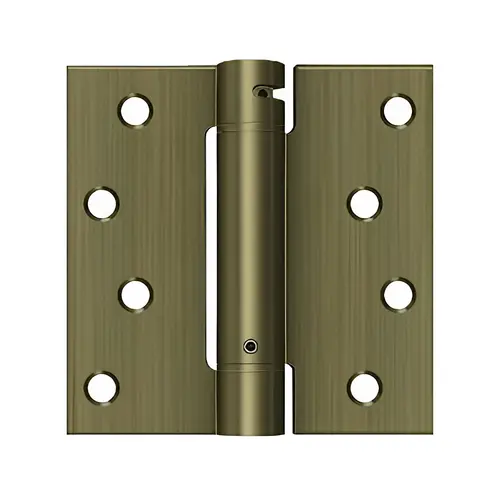

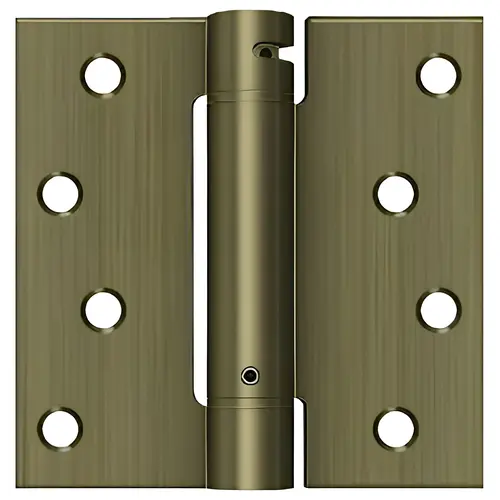

The DSH44 Single Action Spring Hinge is a self-closing hinge designed for residential and commercial door applications. Constructed from steel with an antique brass finish, this hinge features a 4" height and 4" width with square corners. It is a spring-loaded hinge with 3 knuckles and a plain bearing design. The hinge is UL listed and suitable for standard door installations. It utilizes a zig-zag hole pattern with 8 holes for mounting. The hinge thickness is 0.097". Included with the hinge are No.10 x 1" wood screws and No.10 x 1/2" machine screws for installation. This hinge is designed for mortise mounting and features a non-removable spring pin. The product is intended for standard door hardware use. It comes with a limited 1 year mechanical and 1 year finish warranty. The hinge is designed to be adjustable, allowing for control over the closing action of the door in various residential and commercial settings.
