The SPS Angled Support Assembly is used to provide lateral support when the mounting substrate is more than 6" (152 mm) from the top of the SPS Overhead Track. Each set consists of a steel Upper Angled Mounting Bracket, an aluminum Lower Angled Mounting Bracket, one 1/2"-13 x 55" (1.40 m) long Suspension Rod, one 3/8"-16 x 1-1/4" (31.7 mm) Track Mounting Bolt, five 1/2"-13 Hex Nuts, five Flat Washers, and two Lock Washers.
The Upper Mounting Bracket requires a single fastener (not supplied) to attach it to the substrate, or if mounting to steel, it can be welded. Consult a structural engineer for recommendation.
NOTE: Must be used in conjunction with CRL Cat. No. 90TSX1Extended Support Assemblies to stabilize the entire SPS Overhead Track.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

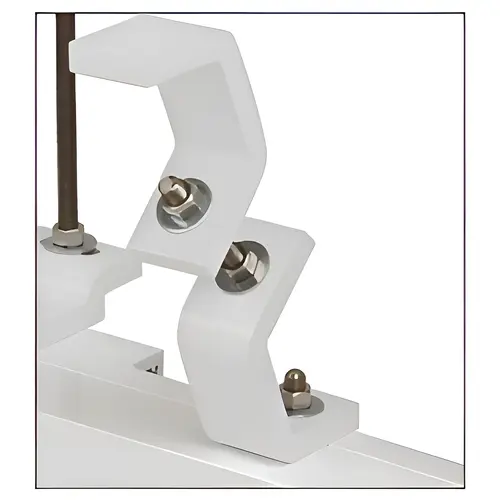

SPS 90TSA1 Angled Support Assembly
Item #: 90TSA1 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Accommodates Up to a 40" (1.02 m) Vertical Suspension from Structure
- Angled to Provide Lateral Support
- Provides 'Fine-Tune' Adjustment
Type
Angled Support Assembly
Works with
SPS System
Product Overview
The SPS Angled Support Assembly is used to provide lateral support when the mounting substrate is more than 6" (152 mm) from the top of the SPS Overhead Track. Each set consists of a steel Upper Angled Mounting Bracket, an aluminum Lower Angled Mounting Bracket, one 1/2"-13 x 55" (1.40 m) long Suspension Rod, one 3/8"-16 x 1-1/4" (31.7 mm) Track Mounting Bolt, five 1/2"-13 Hex Nuts, five Flat Washers, and two Lock Washers.
The Upper Mounting Bracket requires a single fastener (not supplied) to attach it to the substrate, or if mounting to steel, it can be welded. Consult a structural engineer for recommendation.
NOTE: Must be used in conjunction with CRL Cat. No. 90TSX1Extended Support Assemblies to stabilize the entire SPS Overhead Track.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
