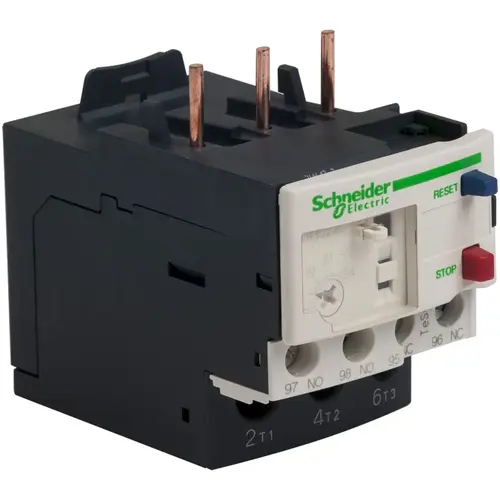

Thermal overload relay, TeSys Deca, 690VAC, 17 to 24A, 1NO+1NC, class 20, for unbalanced loads

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Square D Thermal overload relay, TeSys Deca, 690VAC, 17 to 24A, 1NO+1NC, class 20, for unbalanced loads

Item #: LR3D22L by SCHNEIDER ELECTRIC USA INC

Brand: Square D

UPC #: 785901728801

See reviews
See reviews summary

$206.82

/each
SAVE UP TO 20.68
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
-
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Mounting Type

Plate

Depth

76 mm

Dielectric Strength

1.89 kV

Frequency Rating

400 Hz

IP Rating

IP20

Standard

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || EN 50495

Ambient temperature

-20-60°C

Torque

1.7 N.m

Connection Type

Control Circuit Screw Clamp Terminals

Rated Voltage

690V AC

Class Rating

20

Product Overview
TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 12.5 to 15HP motors thanks to a thermal range 16-24A, a tripping class 20, for use with unbalanced loads.
