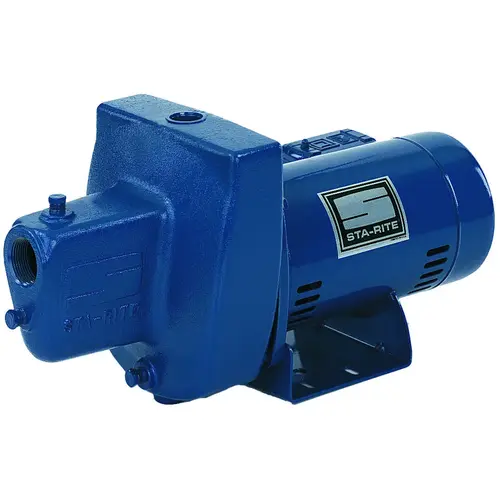

STA-RITE FSNDH-L FSNDH Jet Pump, 12.2/6.1 A, 115/230 V, 0.75 hp, 1-1/4 in Suction, 1 in Discharge Connection, Iron
Item #: FSNDH-L by STA-RITE INDUSTRIES
UPC #: 022315110281
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Close-grained cast iron body and base, specially treated for corrosion resistance
- Provides strong performance with good pressure for wells to 25 ft deep
- Self-priming after the priming chamber has been filled with water
- Motor windings feature insulation materials that protect against excessive moisture and contaminants
- Heavy-duty ball bearings are sealed, permanently lubricated, and tested to ensure extended life and smooth quiet operation
- Clean-out plug provided for ease of service
- Noryl impeller is precision molded for perfect balance, and is ultra smooth for highest performance and efficiency
- Balanced rotor is die cast under high pressures for uniform performance and greater efficiency
- Pump and motor shaft are stainless steel for maximum corrosion resistance, with a one-piece threaded shaft for positive drive and alignment
- Pressure switch with adjustable cut in and fixed differential (20 psi)
Material
Iron
Nomenclature
FSNDH-L SHLLW WELL JET PUMP
Pressure rating
20 psi
HP Rating
0.75 hp
Current Rating
12.2/6.1 A
Connection Type
NPT
Connection Size
1-1/4 in Suction 1 in Discharge
Specifications:
Includes: Dustproof Cover
Material: Iron
Suitable for: Shallow Wells
Close-grained cast iron body and base, specially treated for corrosion resistance. Provides strong performance with good pressure for wells to 25 ft deep. Self-priming after the priming chamber has been filled with water. Drain port provided for easy winterizing. Pump primes faster and handles more air with a multi-port, precision-molded, reinforced polypropylene diffuser. Motor windings feature insulation materials that protect against excessive moisture and contaminants. Heavy-duty ball bearings are sealed, permanently lubricated and tested to ensure extended life and smooth quiet operation. Built-in jet features a high strength poly-carbonate nozzle and venturi for maximum resistance to corrosion and abrasion. Clean out plug provided for ease of service. Noryl impeller is precision molded for ideal balance and is ultra-smooth for highest performance and efficiency. Mechanical shaft seal is precision lapped and made of highly polished carbon-ceramic, stainless steel construction, with an internal design for continuous water lubrication. Balanced rotor is die-cast under high pressures for uniform performance and greater efficiency. Pump and motor shaft are stainless steel for maximum corrosion resistance, with a one-piece threaded shaft for positive drive and alignment. Includes a dustproof cover to protect all electrical components from dirt, dusts and insects. Pressure switch with adjustable cut-in and fixed differential (20 psi). 115/230 V.
