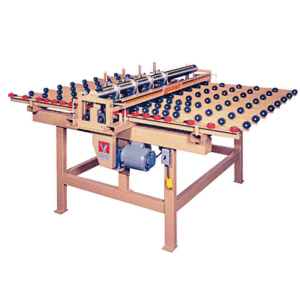

The CRL One Direction Stalter Machine is one of the most popular cutting machines of its kind in the world. Its list of users reads like a "Who's Who in the Glass Industry". The reasons are simple: The machine is easy to adjust, ruggedly built for years of dependable service, has accurate tolerances ( 1/64 inch), can score glass as fast as two men can load and unload, and best of all, it is inexpensive. Additional cutting heads may be added to any Stalter machine.
Machine operation is simple. The operator merely places the glass against the index wheels on the left side of the machine, and feeds it into the pinch rolls which power the glass under the cutter bar assembly. There are only two adjustments: One for the width of the cut, and the second for the glass thickness. Both adjustments are easily made.
Capacity:
Glass from single strength up to 1/4" (6 mm) thick, in sizes from 9" x 9" (229 x 229 mm) up to full width. The minimum distance between cuts is 1" (25 mm).
Options:
Additional Split-Type Cutting Heads may be added to the machine.
Controls: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Single phase, 60 cycle, 110V AC power. One 1/4 HP motor (.18 kw) at 15 AMP @ 110V AC.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Available for Purchase or Lease
- Includes Four Split Design Cutting Heads
- Models from 60" to 120" (1.5 to 2.8 m) Capacity
- Operates on Single Phase 110V AC Power
- Standard 36" (914 mm) In-Feed and Out-Feed Tables
Height
37 in (940 mm)
Dimensions
75" x 82" (1.9 x 2.1 m)
Length
82 in (2083 mm)
Width
75 in (1905 mm)
Glass Size
60
F.O.B
Dallas, Texas
Finish
Oil Rubbed Bronze
UL Listed
Yes
Distance Between Cuts
1"
Configuration
One Direction Cutting
Distance Between Cuts
1 in. (25.4 mm)
Product Overview
The CRL One Direction Stalter Machine is one of the most popular cutting machines of its kind in the world. Its list of users reads like a "Who's Who in the Glass Industry". The reasons are simple: The machine is easy to adjust, ruggedly built for years of dependable service, has accurate tolerances ( 1/64 inch), can score glass as fast as two men can load and unload, and best of all, it is inexpensive. Additional cutting heads may be added to any Stalter machine.
Machine operation is simple. The operator merely places the glass against the index wheels on the left side of the machine, and feeds it into the pinch rolls which power the glass under the cutter bar assembly. There are only two adjustments: One for the width of the cut, and the second for the glass thickness. Both adjustments are easily made.
Capacity:
Glass from single strength up to 1/4" (6 mm) thick, in sizes from 9" x 9" (229 x 229 mm) up to full width. The minimum distance between cuts is 1" (25 mm).
Options:
Additional Split-Type Cutting Heads may be added to the machine.
Controls: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Single phase, 60 cycle, 110V AC power. One 1/4 HP motor (.18 kw) at 15 AMP @ 110V AC.
