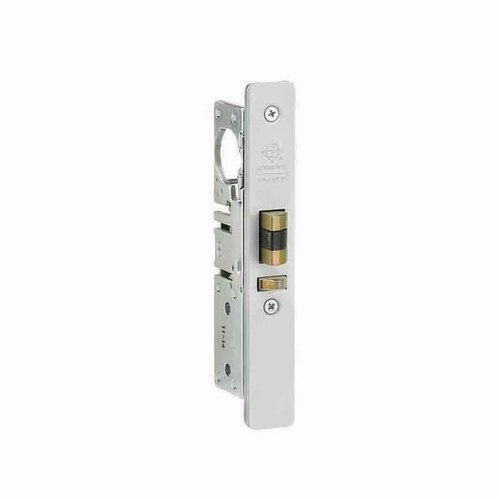

Adams Rite 4510-25-101-628 Standard Duty Deadlatch 31/32" Left Hand; 4-5/8" Standard Mortised Strike Clear Anodized Aluminum Finish
Item #: 4510-25-101-628 by Adams Rite
In Stock $81.75 /each
Buying in bulk

Roll over image to zoom in
Adams Rite 4510-25-101-628 Standard Duty Deadlatch 31/32" Left Hand; 4-5/8" Standard Mortised Strike Clear Anodized Aluminum Finish
Item #: 4510-25-101-628 by Adams Rite
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
- Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
- Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
- Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
- Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
- Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
- Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
- Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
- Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately. Shipping weight: 1-1/4 lbs.
Thickness
1-3/4" - 2"
Hand
Field Reversible
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
Function
Narrow Stile Latch Lock
Cylinder Type
Less Cylinder
Origin
USA
BAA Qualified
Yes
Package Height
2.125"
Package Length
8.875"
Package Volume
61.29296875
Package Width
3.25"
Bolt Protection
1/2"
Dust Box
Plastic
Latch Backset Dim
31/32"
Latch Type
Guarded Latch
Lock Face Size
6-7/8" x 1"
Package Qty
1
Product Height
1.6"
Product Length
6.88"
Product Width
1"
Screws
Machine
Strike Height
4-5/8"
Strike Number
4901-01
Strike Type
Mortise
Strike Width
1-9/16"
Base Material
Aluminum
Finish
Clear Anodized Aluminum
Grade
ANSI/BHMA Grade 1
Backset
1-1/8" Backset
Strike
2-5/8" Standard Mortised Strike
Finish Description
Satin Aluminum
Product Type
Latch Lock
Strike Name
458
Strike Shape
Flat/Standard Jamb
Handing
Left Hand
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
