Well Pump 3/4 HP 930 gph Cast Iron Shallow

Roll over image to zoom in

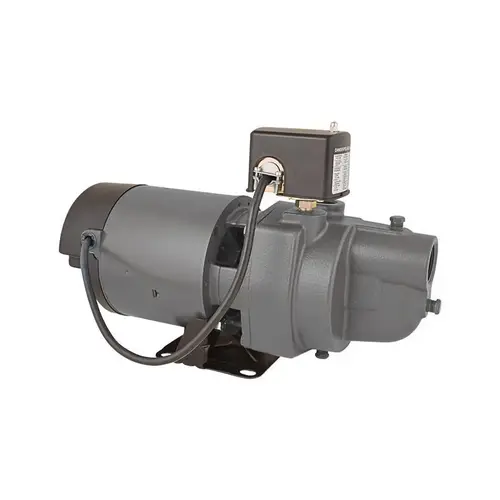

Star Water Systems ES07S Well Pump 3/4 HP 930 gph Cast Iron Shallow

Item #: ES07S by FLINT&WALLING MFG CO INC

UPC #: 054757002084

See reviews See reviews

In Stock $456.45 /each

SAVE UP TO 45.64

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Carbon/Ceramic Mechanical Shaft Seal
  • Sturdy Cast Iron Construction
  • Includes Removable Ejector For Easy Serviceability And Pressure Switch
  • Easy Access Drain Plug For Winterizing
  • Stainless Steel Motor Shaft Sleeve For Corrosion Resistance
  • Continuous Duty Uni-frame 56 Frame Motor (NEMA J Adaptable)
  • Capacitor Start Motors Provide Maximum Starting Torque
  • 1-year Limited Warranty
  • Special Priming Port And Large Volume Case Makes Priming Easier
  • Thermal Overload Protects Against Overheating

Thermally Protected

Yes

Returnable

Yes

Minimum Temperature

32 °F

Maximum Discharge Flow

930 gph

Weight

42 lb.

Hardware Included

No

Height

15.10

Defective Code

B

Corrosion Resistant

Yes

RPM

3450 RPM

Width

10.40

Impeller Type

Precision-Balanced, Molded Thermoplastic

Phase

Single-Phase

Powered By

AC °F

Self Priming

Self-Priming

Pump Switch Type

Pressure °F

Maximum Temperature

130 °F

Volts

115/230 V

Agency Compliance

CSA and UL

Discharge Pipe Size

1"

Inlet Size

1-1/4"

With Tank

No

Depth

19.5"

Maximum Feet of Head

25 ft.

Stages

Single Stage

Product Type

Well Pump

Housing Material

Cast Iron

Horsepower

3/4 HP

Pump Type

Shallow °F

Hertz

60 HZ

AMPS

13.0/6.5

Each Weight

39.780 LB

Velocity

X

Hazardous Material

No

Length

19.20

Country Origin Code

US

ECCN

EAR99

Warranty

2 year Limited Parts and Labor

Designed for shallow wells with suction lifts from 0' to 25' (0 to 8 m). These pumps provide capacities up to 930 GPH (3,520 LPH) and pressures up to 50 PSI.
