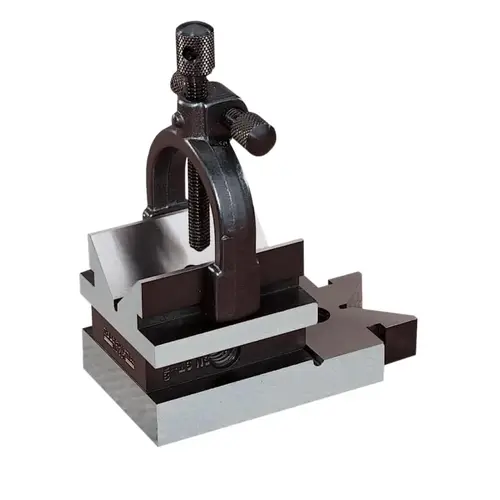

Starrett 52588 No. 567 V-Block and Clamp, 1 5/16 in Capacity
Item #: 52588 by Starrett
UPC #: 049659525885
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
UNSPSC
31162900
Capacity [Nom]
1 5/16 in
Product Overview
Can be used on its base, on the end, or on either side
The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc.
A clearance hole for drilling or removing dowel pins is provided in the block
The block has four 3/8-16 tapped holes
The block is hardened and precision ground
The clamp is a strong forging.
The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc.
A clearance hole for drilling or removing dowel pins is provided in the block
The block has four 3/8-16 tapped holes
The block is hardened and precision ground
The clamp is a strong forging.
