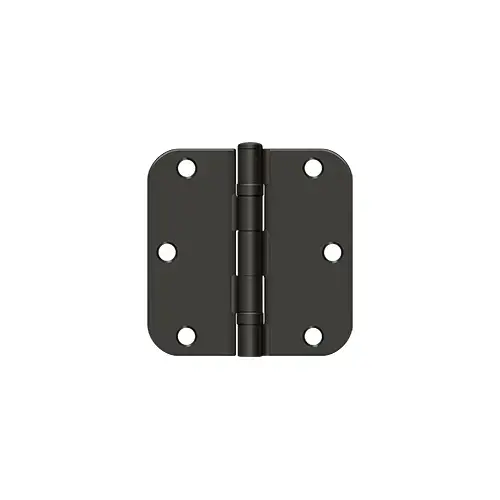

Deltana S35R5BB10B 3-1/2" X 3-1/2" S Series Radius Hinge, Steel Material, 5/8" Radius Corner, Ball Bearing Mechanism, Oil Rubbed Bronze Finish
Item #: S35R5BB10B by Deltana
Brand: Deltana
UPC #: 760923477159
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an oil rubbed bronze finish, providing a functional component for residential and commercial door systems.
- Measures 3-1/2" in height and 3-1/2" in width with a 0.085" gauge, designed for standard door frame applications.
- Features a 5/8" radius corner and full mortise mounting method, suitable for various wooden, glass, or metallic cabinet doors.
- Equipped with a ball bearing mechanism and a removable pin, ensuring smooth operation for indoor door installations.
- Heavy duty hinge design with 5 knuckles and a button tip, approved for commercial use in residential settings.
- Includes 6 mounting holes in an arc pattern, facilitating installation with the provided No.9 x 3/4" wood screws.
- Supplied as a pair, this S Series hinge is designed for indoor applications and includes a limited 1 year mechanical warranty.
Approved for Commercial Use
Yes
Function
Residential Hinge
Gauge
0.085
Height
3-1/2
Hinge Height
3.5
Hinge Strength
Heavy Duty
Hinge Type
Ball Bearing
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Width
3-1/2
Color
Oil Rubbed Bronze
Finish
US10B
Box Qty
1 pr
Case Weight
40 lbs
Corners
5/8
Options
Ball Bearing
Thickness
.085
Wood Screw
#9 x 3/4
Material
Steel
Packaging Detail
Pair
Size
3-1/2" Height x 5/8" Radius
Type
Radius Corner
Pack Size
1
Finish Description
Oil Rubbed Dark Bronze
Bearing Type
Ball
Finish Family
Dark Bronze
Hinge Size
3-1/2 x 3-1/2 Inch
Product Material
Steel
Recommended For
Indoor Applications
Number of Mounting Holes
6
Metal Gauge
0.085 Inch
Fastener Size
#9 x 3/4"
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
S35R5BB-10B-PR
Color Code
US10B
Dimension
3-1/2" x 3-1/2"
Pin Type
Removable Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US10B
No of inners
1
Substrate Type
Steel
Product Size
3.5" x 3.5"
Mounting Method
Full Mortise
Product Dimension
3-1/2" x 3-1/2"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
5/8" Radius Corners
Bearing Type
Ball Bearing
Product Overview
The 3-1/2" x 3-1/2" x 5/8" Radius Hinge, Ball Bearing in Oil-rubbed Bronze Pair is a residential hinge designed for indoor applications. Constructed from steel with an oil rubbed dark bronze finish, this hinge is suitable for metallic, glass, or wooden cabinet doors. It features a 5/8" radius corner and a 5-knuckle design with a button tip. The hinge utilizes a ball bearing mechanism for operation and includes a removable pin. It has a metal gauge of 0.085" and is designed for full mortise mounting. The hinge includes 6 mounting holes in an arc pattern and comes with No.9 x 3/4" wood screws for installation. This heavy duty hinge is approved for commercial use and is part of the S Series. The hinge measures 3-1/2" in height and 3-1/2" in width. It is supplied as a pair. The product is backed by a limited 1 year mechanical and 1 year finish warranty. The concealed barrel and accurately assembled plates contribute to the structural design of this hinge, which is intended for standard residential and commercial door hardware setups.
