Features
- Constructed from steel with a brushed chrome finish, providing a functional component for residential and commercial door hardware.
- Measures 3-1/2" in height and 3-1/2" in width, with a 0.085" gauge thickness and 5/8" radius corners for standard door preparation.
- Features a full mortise mounting type with an arc hole pattern containing 6 pre-drilled holes for installation on doors.
- Equipped with a ball bearing mechanism and 5 knuckles to support heavy duty door operation in various interior environments.
- Includes a removable pin design, allowing for the door to be detached from the frame when required for maintenance or access.
- Suitable for use with metallic, glass, or wooden cabinet and interior doors, meeting requirements for commercial and residential use.
- Supplied as a pair with No.9 x 3/4" wood screws included, ensuring the necessary components for a standard door installation.
Approved for Commercial Use
Yes
Function
Hinge
Gauge
0.085
Height
3-1/2
Hinge Height
3.5
Hinge Strength
Heavy Duty
Hinge Type
Ball Bearing
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Width
3-1/2
Finish
US26D
Box Qty
1 pr
Case Weight
40 lbs
Corners
5/8
Options
Ball Bearing
Thickness
.085
Wood Screw
#9 x 3/4
Material
Steel
Packaging Detail
Pair
Size
3-1/2" Height x 5/8" Radius
Type
Radius Corner
Pack Size
1
Dimension
3-1/2" x 3-1/2"
Pin Type
Removable Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Ball Bearing
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US26D
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Substrate Type
Steel
Product Size
3.5" x 3.5"
Mounting Method
Full Mortise
Product Dimension
3-1/2" x 3-1/2"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
5/8" Radius Corners
Product Material
Steel
Bearing Type
Ball Bearing
Product Overview

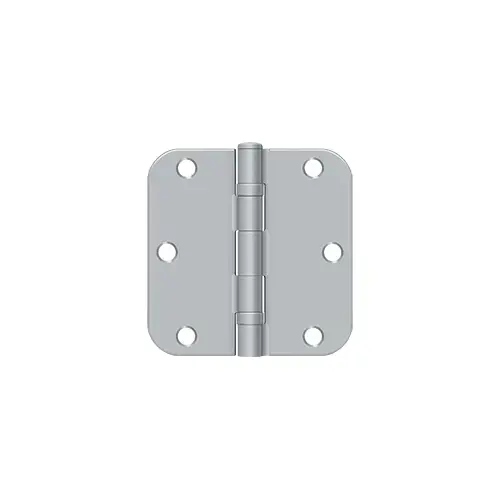

The 3-1/2" x 3-1/2" x 5/8" Radius Hinge, Ball Bearing in Brushed Chrome Pair is a heavy duty hinge designed for residential and commercial door applications. Constructed from steel, this hinge features a ball bearing mechanism for smooth operation. The hinge measures 3-1/2" in height and 3-1/2" in width, with a thickness of 0.085". It is designed with a 5/8" radius corner and a button tip style. This hinge includes 5 knuckles and an arc hole pattern with 6 pre-drilled holes for mounting. It utilizes a full mortise mounting method and is supplied with No.9 x 3/4" wood screws for installation. The hinge features a removable pin, allowing for door removal when necessary. This product is suitable for metallic, glass, or wooden cabinet doors and interior door applications. The brushed chrome finish provides a clean aesthetic for various door hardware setups. This package includes a pair of hinges.
