Deltana S35R54 S35R54 3-1/2" 5/8R Standard Hinge - Pair - Satin Brass
Item #: S35R54 by Deltana
UPC #: 760923239580
11 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- It has optimum coefficient of friction that ensures its smooth function
- It is a cost-effective solution to replace your previous hinge with a better one
- It can function smoothly without the need of any repair by simple oiling from time to time
Approved for Commercial Use
Yes
Function
Hinge
Gauge
0.085
Hinge Height
3.5
Hinge Strength
Hinge Type
Plain Bearing, Butt
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
5
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R5/Residential
Corner
5/8" Radius
Dimensions
Width: 3.5 inches
Size
3-1/2" Height x 5/8" Radius
HingeGrade
Commercial
Height
3-1/2
Width
3-1/2
Finish
Satin Brass
Box Qty
1 pr
Case Weight
40 lbs
Corners
5/8"
Options
Residential
Packed
Bulk (Case Quantities Only)
Thickness
.085
Wood Screw
#9 x 3/4"
Material
Steel
Type
Radius Corner
Pack Size
1
Packaging Detail
Default
Color Code
606/US4
Finish Description
Satin Brass
Finish Family
Satin Brass
Hinge Size
3-1/2 x 3-1/2 Inch
Product Material
Steel
Recommended For
Indoor Applications
Number of Mounting Holes
6
Metal Gauge
0.085 Inch
Fastener Size
#9 x 3/4"
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Residential_Hinges_Deltana_8
Package Height
0.01"
Package Length
0.01"
Package Width
0.01"
Item Weight
1.5 lbs
Product Overview

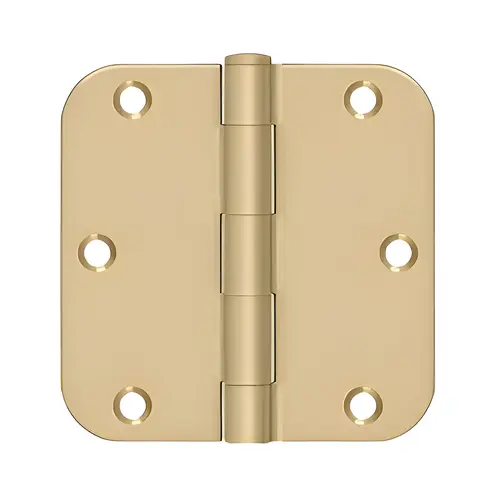

S35R54 3-1/2" x 3-1/2" 5/8R Hinge 2/pk - Satin Brass
Deltana steel hinges are a reliable value choice for indoor applications. They are available in an array of fine finishes.
-Hinge measures 3-1/2 inches by 3-1/2 inches with a 5/8-inch corner radius, a thickness of 0.085 inches, and a pin radius of 1/4 inches
-Each screw hole measures 3/8 inches from its center to nearest edge of the hinge and 1-3/8 inches from the center of the nearest screw hole
-Available in 13 unique finishes
-All required mounting materials are included, if necessary
-Manufactured with steel which results in a high-quality product that lasts
