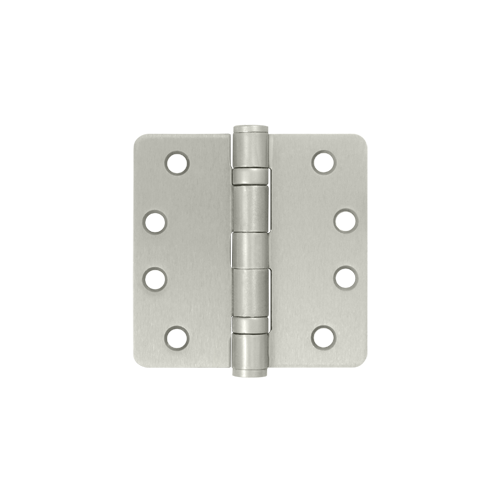

Deltana S44R4HDB15 4" x 4" x 1/4" Radius Corner Hinge w/ Ball Bearings
Item #: S44R4HDB15 by Deltana
UPC #: 760923492039
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Reduces sound of the door as compared to plain hinges
- Easily mounted with the help of screws offered by Deltana
- Has four pre-drilled holes in arch shaped pattern to dissipate the load equally
- Provided with ball bearing for more support in heavy doors
Application
2BB/R4/HD
Corner
1/4" Radius
Dimensions
Width: 4 inches
Color
Satin Nickel
Size
4" Height X 1/4" Radius
Height
4
Thickness
0.129"
HingeGrade
Commercial
Width
4
Finish
Satin Nickel
Case Weight
53 Lbs
Options
2BB/ R4/ HD
Material
Steel
Machine Screw
#12 x 1/2"
Number of Knuckles
5
Corners
1/4" Radius
Hinge Strength
Residential
Hinge Type
Ball Bearing
Hinge Width
4
Screw Type
Machine, Wood
Gauge
0.125
Hinge Height
4
Number of Holes
8
Mounting Type
Mortise
Theme
Traditional
Hole Pattern
Arc
Removable Pin
With Removable Pin
Wood Screw
#12x1"
Function
Residential Hinge
Packaging Detail
Pair
Type
Radius Corner
Pack Size
1
Finish Description
Satin Nickel
Hinge Size
4 x 4 Inch
Function Family
Hinge/Pivot
Product Type
Hinge/Pivot
Manufacturer Parent
Deltana
Sub-Series
S44R4HDB-26D-PR
Color Code
619/US15
Finish Family
Satin Nickel
