Features

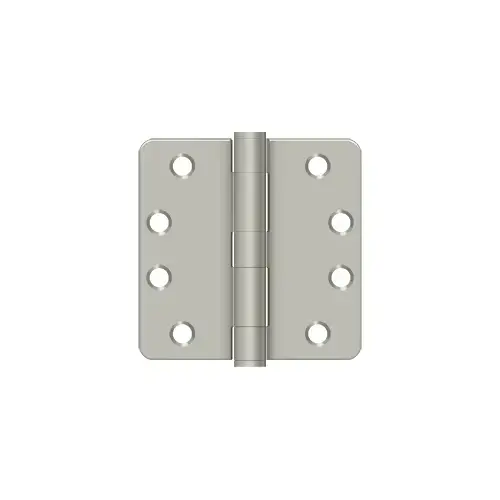

- Constructed from steel with a satin nickel finish, this heavy-duty hinge is designed for residential and commercial door applications.
- Measures 4" in height and 4" in width, with a 0.129" gauge and 1/4" radius corners for standard door preparation and installation.
- Features a full mortise mounting type and a plain bearing mechanism, suitable for interior door installations in traditional settings.
- Includes a removable pin and a 5-knuckle design, providing standard operation and ease of maintenance for residential door hardware.
- Designed with 8 mounting holes in an arc pattern to ensure stable and secure attachment to door frames and door edges during use.
- Suitable for indoor applications, this hinge is compatible with both wood and metal doors using the included No.12 fasteners for setup.
- Comes as a pair and includes No.12 x 1" wood screws and No.12 x 1/2" machine screws for a complete and ready-to-install door solution.
Application
R4/Heavy Duty
Corner
1/4" Radius
Dimensions
Width: 4 inches
Color
Satin Nickel
Size
4" Height X 1/4" Radius
HingeGrade
Commercial
Height
4
Width
4
Finish
US15
Box Qty
1 pr
Case Weight
53 lbs
Corners
1/4"
Machine Screw
#12 x 1/2"
Options
R4/ Heavy Duty
Thickness
.129
Wood Screw
#12 x 1"
Material
Steel
Theme
Traditional
Function
Residential Hinge
Hinge Height
4
Screw Type
Machine, Wood
Mounting Type
Mortise
Hinge Type
Plain Bearing
Removable Pin
With Removable Pin
Hinge Strength
Residential
Quantity
2
Hinge Width
4
Gauge
0.128
Hole Pattern
Arc
Number of Holes
8
Number of Knuckles
5
Type
Radius Corner
Screws
Wood Screw: #12 x 1" Machine Screw: #12 x 1/2"
Pack Size
1
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Hinge Size
4 x 4 Inch
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Metal Gauge
0.129 Inch
Fastener Size
Machine Screw: #12 x 1/2"; Wood Screw: #12 x 1"
Hinge Corner
1/4 Inch Radius Corner
Function Family
Hinge/Pivot
Features
For Indoor Applications
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Residential_Hinges_Deltana_15
Color Code
US15
Dimension
4" x 4"
Pin Type
Removable Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Plain Bearing
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
1/4" Radius Corner
Hazardous Material
No
Finish code
US15
No of inners
1
Substrate Type
Steel
Product Size
4" x 4"
Mounting Method
Full Mortise
Product Dimension
4" x 4"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
1/4" Radius Corners
Bearing Type
Plain Bearing
Product Overview
The 4" x 4" x 1/4" Radius Hinge, HD in Brushed Nickel Pair is a steel hinge designed for residential and commercial door applications. This hinge features a 1/4" radius corner and a 5-knuckle, plain bearing design. It is constructed from steel with a 0.129" gauge and a button tip. The hinge is intended for full mortise mounting and includes a removable pin. It features 8 mounting holes in an arc pattern. The hinge measures 4" in height and 4" in width, with a thickness of 0.129". It comes with No.12 x 1" wood screws and No.12 x 1/2" machine screws for installation. The satin nickel finish provides a neutral aesthetic suitable for traditional interior door setups. This S Series hinge is built for indoor use and is compatible with both wood and metal doors. The plain bearing mechanism allows for smooth operation, while the heavy-duty construction provides structural support for standard interior doors. The hinge is finished in satin nickel, which maintains its appearance over time. The package includes 2 hinges, providing a complete set for a single door installation. The limited 1-year mechanical and 1-year finish warranty covers the product against defects, ensuring reliability for residential and commercial projects.
