Features
- Constructed from steel with a satin chrome finish for use in residential and commercial door hardware applications.
- Measures 4" in height and 4" in width with a 0.129" thickness, featuring a 1/4" radius corner design.
- Designed for full mortise mounting with an arc hole pattern containing 8 mounting holes for installation.
- Features a plain bearing mechanism with 5 knuckles and a removable pin for standard door operation.
- Includes No.12 x 1" wood screws and No.12 x 1/2" machine screws for versatile mounting on various door types.
- Suitable for indoor applications, providing a functional hinge solution for residential and commercial doors.
- Heavy duty R4 application rating with a 0.129" metal gauge, ensuring compatibility with standard door hardware requirements.
HingeGrade
Commercial
Height
4
Width
4
Application
R4/Heavy Duty
Corner
1/4" Radius
Dimensions
Width: 4 inches
Size
4" Height X 1/4" Radius
Finish
US26D
Box Qty
1 pr
Case Weight
53 lbs
Corners
1/4"
Machine Screw
#12 x 1/2"
Options
R4/ Heavy Duty
Thickness
.129
Wood Screw
#12 x 1"
Material
Steel
Gauge
0.128
Removable Pin
With Removable Pin
Screw Type
Machine, Wood
Number of Holes
8
Hinge Width
4
Number of Knuckles
5
Hinge Strength
Residential
Hinge Height
4
Function
Residential Hinge
Quantity
2
Theme
Traditional
Hinge Type
Plain Bearing
Mounting Type
Mortise
Hole Pattern
Arc
Type
Radius Corner
Screws
Wood Screw: #12 x 1" Machine Screw: #12 x 1/2"
Pack Size
1
Finish Description
Satin Chrome
Finish Family
Satin Chrome
Hinge Size
4 x 4 Inch
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Metal Gauge
0.129 Inch
Fastener Size
Machine Screw: #12 x 1/2"; Wood Screw: #12 x 1"
Hinge Corner
1/4 Inch Radius Corner
Function Family
Hinge/Pivot
Features
For Indoor Applications
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Residential_Hinges_Deltana_15
Color Code
US26D
Substrate Type
Steel
Product Size
4" x 4"
Mounting Method
Full Mortise
Product Dimension
4" x 4"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
1/4" Radius Corners
Bearing Type
Plain Bearing
Product Overview

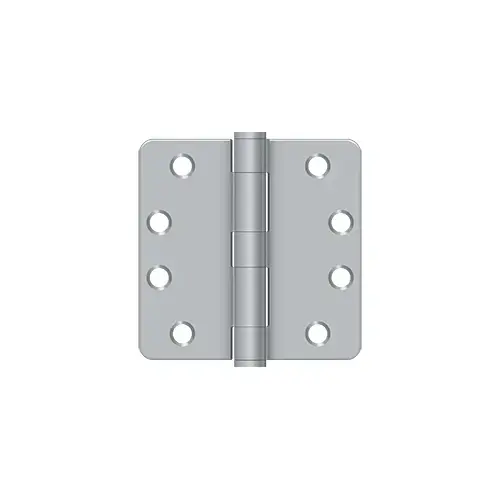

The 4" x 4" x 1/4" Radius Hinge, HD in Brushed Chrome Pair is a steel hinge from the S Series, designed for residential and commercial door applications. This plain bearing hinge features a 1/4" radius corner style and is intended for full mortise mounting. The hinge measures 4" in height and 4" in width, with a metal gauge of 0.129". It is constructed with 5 knuckles and includes 8 mounting holes arranged in an arc pattern for installation. The hinge is compatible with both wood and machine screws, specifically No.12 x 1" wood screws and No.12 x 1/2" machine screws. It features a removable pin design, allowing for door removal without unscrewing the hinge plates. This hinge is suitable for indoor applications and is finished in satin chrome. As part of the Hinge/Pivot function family, it provides a standard pivot point for doors. The hinge is designed for heavy duty R4 applications, offering a consistent performance for residential and commercial door setups. The package includes 2 hinges, providing a complete set for a single door installation.
