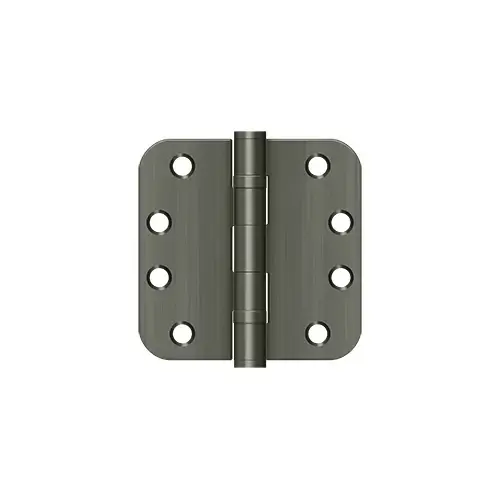

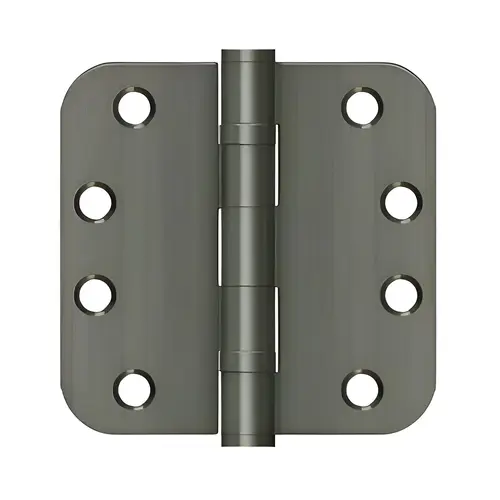

Deltana S44R5HDB15A 4"X 4"X 5/8" Radius Hinge, Steel Material, Ball Bearing Type, 5/8" Radius Corner, Traditional Style, Antique Nickel Finish
Item #: S44R5HDB15A by Deltana
Brand: Deltana
UPC #: 760923245055
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an antique nickel finish, providing a traditional aesthetic for residential and commercial doors.
- Measures 4" in height and 4" in width with a 5/8" radius corner, suitable for standard mortise door installations.
- Features a ball bearing mechanism that provides support for heavy doors and reduces noise during operation.
- Designed with 5 knuckles and a 0.129" thickness, ensuring structural stability for door hardware applications.
- Includes 8 pre-drilled holes in an arc-shaped pattern to help dissipate the load equally across the door frame.
- Supplied as a pair, including No.12x1" wood screws and No.12 x 1/2" machine screws for a complete installation.
- Features a non-removable pin design, suitable for various indoor door applications requiring a fixed hinge setup.
Function
Hinge
Gauge
0.129
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Dimensions
Width: 4 inches
Size
4" Height X 5/8" Radius
Corner
5/8" Radius
Application
2BB/R5/HD
HingeGrade
Commercial
Width
4
Height
4
Finish
Antique Nickel
Box Qty
1 pr
Case Weight
52 lbs
Corners
5/8" Radius
Options
2BB/ R5/ HD
Thickness
0.129"
Wood Screw
#12x1"
Material
Steel
Machine Screw
#12 x 1/2"
Packaging Detail
Pair
Type
Radius Corner
Pack Size
1
Product Overview
The 4"x 4"x 5/8" Radius Hinge, HD, Ball Bearings in Antique Nickel Pair is a residential and commercial grade hinge designed for door mounting. Constructed from steel with an antique nickel finish, this hinge features a 5/8" radius corner and a 4" height by 4" width dimension. It utilizes a ball bearing mechanism to provide support for heavy doors and reduce noise during operation. The hinge is designed for mortise mounting and includes 8 pre-drilled holes in an arc-shaped pattern to distribute load. It has a thickness of 0.129" and features 5 knuckles. The hinge is supplied as a pair and includes No.12x1" wood screws and No.12 x 1/2" machine screws for installation. This hinge is a non-removable pin type, suitable for traditional door applications. These hinges are intended for indoor use and are available in an array of fine finishes to match existing hardware. The arc-shaped hole pattern is specifically engineered to dissipate the load equally across the door frame, while the ball bearing construction provides additional support for heavy doors, ensuring smooth and quiet movement compared to standard plain hinges.
