Features
- Constructed from steel with a black finish, providing a functional component for residential door hardware.
- Measures 4" in height and 4" in width with a 0.129" gauge thickness for standard door applications.
- Features a 5/8" radius corner design suitable for mortise mounting in residential door frames.
- Equipped with ball bearings to provide support and reduce noise during door operation.
- Includes 8 mounting holes in an arc pattern to dissipate load across the hinge plate.
- Designed as a 5-knuckle hinge for residential door hardware and pivot applications.
- Supplied as a pair with No.12x1" wood screws and No.12 x 1/2" machine screws for installation.
Function
Hinge
Gauge
0.129
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Width
4
Height
4
HingeGrade
Commercial
Application
2BB/R5/HD
Corner
5/8" Radius
Dimensions
Width: 4 inches
Color
Black
Size
4" Height X 5/8" Radius
Finish
Black
Box Qty
1 pr
Case Weight
52 lbs
Corners
5/8" Radius
Options
2BB/ R5/ HD
Thickness
0.129"
Wood Screw
#12x1"
Material
Steel
Machine Screw
#12 x 1/2"
Packaging Detail
Pair
Type
Radius Corner
Pack Size
1
Finish Description
Black
Hinge Size
4 x 4 Inch
Product Type
Hinge/Pivot
Series
S Series Hinges
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Metal Gauge
0.129 Inch
Fastener Size
#12 x 1/2", #12 x 1"
Hinge Corner
5/8 Inch Radius Corner
Function Family
Hinge/Pivot
Features
Deltana Steel Hinges are a Reliable Value Choice for Indoor Applications
Color Code
US1B
Bearing Type
Ball
Finish Family
Black
Manufacturer Parent
Deltana
Sub-Series
S44R5HDB-1B
Product Overview

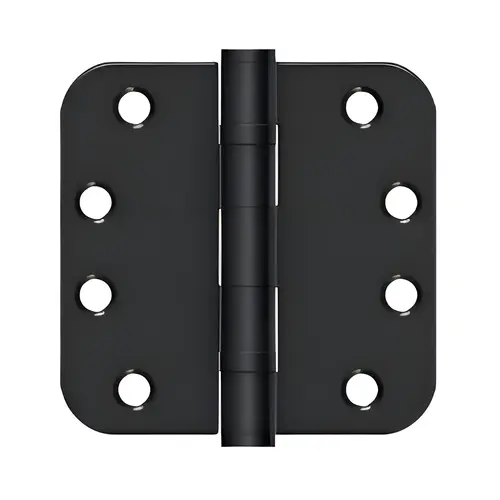

The 4"x 4"x 5/8" Radius Hinge, HD, Ball Bearings in Paint Black Pair is a residential and commercial grade hinge from the S Series, designed for standard door mounting applications. Constructed from steel with a black finish, this hinge features a 5/8" radius corner and a 0.129" gauge thickness. It is a ball bearing hinge type with 5 knuckles and 8 mounting holes arranged in an arc pattern to dissipate load across the hinge plate. The hinge measures 4" in height and 4" in width. It is designed for mortise mounting and includes wood screws measuring No.12x1" and machine screws measuring No.12 x 1/2". This hinge is manufactured without a removable pin, providing a fixed assembly for indoor residential and commercial door installations. The ball bearing mechanism provides support for heavier doors and reduces the sound of the door during operation compared to plain hinges. This product is supplied as a pair, ready for installation in various door hardware setups.
