30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a brushed brass finish, providing a traditional look for residential and commercial door hardware systems.
- Measures 4" in height and 4" in width with a 5/8" radius corner, designed for standard mortise door hinge applications in various frames.
- Features a ball bearing mechanism for smooth operation and support in heavy door installations, effectively reducing noise during daily use.
- Designed with a 0.129" gauge thickness and 5 knuckles, ensuring structural support and stability for consistent door movement over time.
- Includes 8 pre-drilled holes in an arc pattern to dissipate the load equally across the door frame and the hinge leaf for secure mounting.
- Suitable for residential and commercial door applications, providing a reliable and functional hinge solution for interior door setups.
- Supplied as a pair with No.12x1" wood screws and No.12 x 1/2" machine screws included for a complete and straightforward installation process.
Function
Hinge
Gauge
0.129
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Height
4
Width
4
Size
4" Height X 5/8" Radius
Corner
5/8" Radius
Dimensions
Width: 4 inches
Application
2BB/R5/HD
Finish
Brushed Brass
Box Qty
1 pr
Case Weight
52 lbs
Corners
5/8" Radius
Options
2BB/ R5/ HD
Thickness
0.129"
Wood Screw
#12x1"
Material
Steel
Machine Screw
#12 x 1/2"
Packaging Detail
Pair
Type
Radius Corner
Pack Size
1
Product Overview

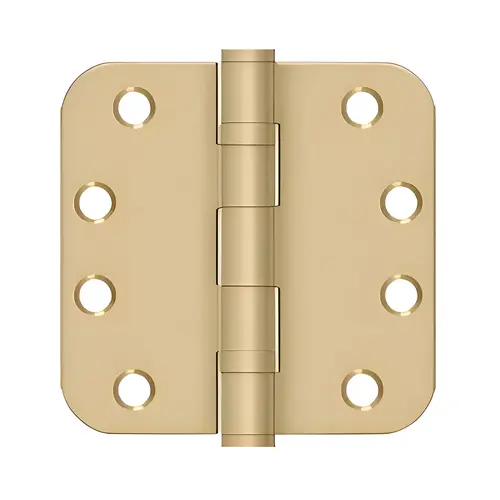

The 4"x 4"x 5/8" Radius Hinge, HD, Ball Bearings in Brushed Brass Pair is a steel hinge designed for residential and commercial door applications. This hinge features a ball bearing mechanism to provide support for heavy doors and reduce noise during operation. It is constructed with a 5/8" radius corner and a 0.129" gauge thickness. The hinge is designed for mortise mounting and includes 8 pre-drilled holes in an arc pattern to distribute load. It features 5 knuckles and is supplied as a pair. The hinge is compatible with No.12x1" wood screws and No.12 x 1/2" machine screws for installation. The brushed brass finish provides a traditional aesthetic suitable for various door hardware setups. This commercial grade hinge is built for consistent performance in high-traffic areas. The radius corner design allows for a flush fit against the door frame, ensuring proper alignment and smooth door movement. The steel construction offers a solid foundation for interior doors, while the ball bearing assembly minimizes friction during opening and closing cycles. This hinge is suitable for both new installations and replacement projects in residential or commercial settings.
