30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a brushed chrome finish, providing a functional component for residential door hardware applications.
- Measures 4" in height and 4" in width with a 5/8" radius corner, designed for standard door frame mortise installations.
- Features a full mortise mounting method with 8 holes in an arc pattern to assist in load distribution across the door frame.
- Equipped with a ball bearing mechanism and 5 knuckles to provide support and reduce noise during door operation.
- Includes a removable pin and button tip style, with a gauge and thickness of 0.129 for structural consistency.
- Designed for residential and commercial door applications, compatible with No.12 x 1" wood screws and No.12 x 1/2" machine screws.
- Supplied as a pair, this hinge set is suitable for traditional door hardware installations requiring reliable movement.
Function
Hinge
Gauge
0.129
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Dimensions
Width: 4 inches
Color
Satin Chrome
Size
4" Height X 5/8" Radius
Corner
5/8" Radius
Application
2BB/R5/HD
HingeGrade
Commercial
Height
4
Width
4
Finish
US26D
Box Qty
1 pr
Case Weight
53 lbs
Corners
5/8
Options
2BB/ R5/ HD
Thickness
.129
Wood Screw
#12x 1
Material
Steel
Machine Screw
#12 x 1/2
Packaging Detail
Pair
Type
Radius Corner
Pack Size
1
Dimension
4" x 4"
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Ball Bearing
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
5/8" Radius Corner
Hazardous Material
No
Finish code
US26D
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Substrate Type
Steel
Product Size
4" x 4"
Mounting Method
Full Mortise
Product Dimension
4" x 4"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
5/8" Radius Corners
Product Material
Steel
Bearing Type
Ball Bearing
Product Overview

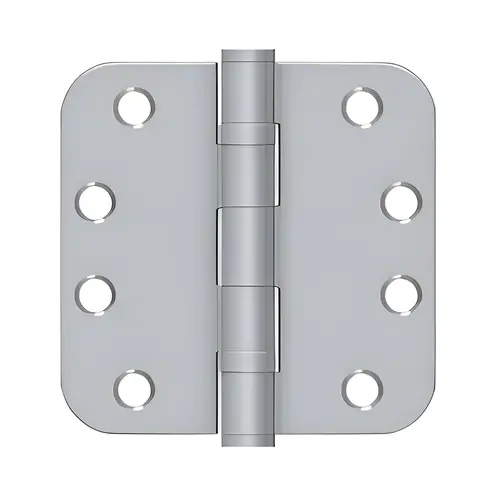

The 4"x 4"x 5/8" Radius Hinge, HD, Ball Bearings in Brushed Chrome Pair is a residential hinge designed for door mounting applications. Constructed from steel with a brushed chrome finish, this hinge features a 5/8" radius corner and a 4" height by 4" width dimension. It utilizes a ball bearing mechanism with 5 knuckles to provide support for door movement. The hinge is designed for full mortise mounting and includes 8 holes in an arc pattern to distribute load. It has a gauge of 0.129 and a thickness of 0.129. The hinge is equipped with a removable pin and button tip style. It is compatible with No.12 x 1" wood screws and No.12 x 1/2" machine screws. This hinge is suitable for traditional door hardware setups and is provided in a pair. The product is part of the Steel, Stainless Steel, and Spring Hinges series and includes a limited 1 year mechanical and 1 year finish warranty. These hinges are designed to reduce the sound of the door during operation compared to plain hinges, offering a functional solution for residential and commercial door hardware needs.
