Features
- Constructed from steel with a satin nickel finish, this heavy-duty hinge provides a functional component for residential door systems.
- Measures 4" in height and 4" in width with a 0.129" thickness, designed for standard door installations in various indoor residential settings.
- Features a full mortise mounting method with 8 mounting holes in an arc pattern to effectively distribute load across the door frame surface.
- Equipped with ball bearings to provide support for heavy doors and ensure quiet operation compared to standard plain bearing door hinges.
- Includes a removable pin and a 5-knuckle design with button tips, offering a traditional aesthetic for interior door hardware applications.
- Suitable for indoor applications, this heavy-duty hinge is approved for commercial and residential use, meeting standard hardware requirements.
- Supplied as a pair with included No.12 x 1/2" machine screws and No.12 x 1" wood screws, allowing for straightforward installation on door frames.
Approved for Commercial Use
Yes
Corners
Square Corner
Function
Residential Hinge
Gauge
0.125
Hinge Height
4
Hinge Strength
Heavy Duty
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Size
4" Height X 4" Width
Application
2BB/HD
Corner
Square
Dimensions
Width: 4 inches
Color
Satin Nickel
HingeGrade
Commercial
Height
4
Width
4
Finish
US15
Options
2BB/HD
Thickness
.129
Material
Steel
Machine Screw
#12 x 1/2
Wood Screw
#12x1
Packaging Detail
Pair
Type
Square Corner
Pack Size
1
Finish Description
Satin Nickel
Bearing Type
Ball
Finish Family
Satin Nickel
Hinge Size
4 x 4 Inch
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Metal Gauge
0.129 Inch
Fastener Size
Machine Screw: #12 x 1/2"; Wood Screw: #12 x 1"
Hinge Corner
1/4 Inch Radius Corner
Function Family
Hinge/Pivot
Features
For Indoor Applications, Heavy Duty
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Residential_Hinges_Deltana_9
Color Code
US15
Case Weight
44 lbs
Dimension
4" x 4"
Pin Type
Removable Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
Square Corner
Hazardous Material
No
Finish code
US15
No of inners
1
Substrate Type
Steel
Product Size
4" x 4"
Mounting Method
Full Mortise
Product Dimension
4" x 4"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
Square Corners
Bearing Type
Ball Bearing
Product Overview

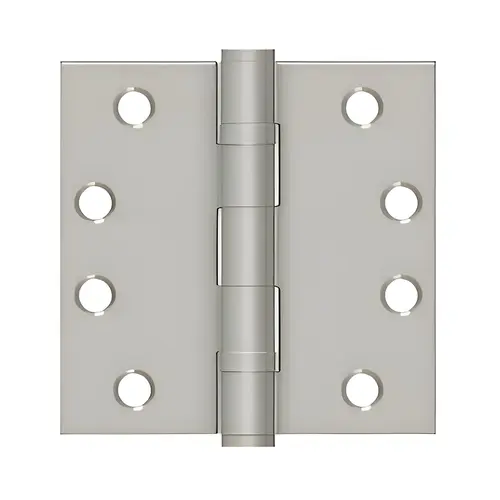

The 4" x 4" Square Hinge, HD, Ball Bearings in Brushed Nickel Pair is a heavy-duty residential hinge designed for interior door applications. Constructed from steel with a 0.129" gauge, this hinge features a ball bearing mechanism that provides support for heavier doors and reduces noise during operation. The hinge measures 4" in height and 4" in width. It utilizes a 5-knuckle design with a button tip and a square corner style. The hinge is designed for full mortise mounting and includes 8 mounting holes in an arc pattern to distribute load across the door frame. It comes with a removable pin and is supplied with both No.12 x 1/2" machine screws and No.12 x 1" wood screws for installation. This hinge is suitable for commercial and residential use, finished in a satin nickel tone. It is backed by a limited 1-year mechanical and 1-year finish warranty, ensuring reliability for indoor door hardware setups.
