30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with an antique nickel finish, this heavy duty hinge is designed for residential and commercial door use.
- Measures 4" in height and 4" in width with a 0.129" thickness, featuring a square corner design for standard door frames.
- Utilizes a ball bearing mechanism to provide support for heavy doors and reduce noise during operation compared to plain hinges.
- Features a 5-knuckle design with 8 pre-drilled holes in an arc pattern to assist in load distribution across the door frame.
- Designed for full mortise mounting, this hinge is suitable for both residential and commercial door hardware applications.
- Includes a removable pin and button tip, with installation hardware consisting of No.12 x 1" wood and No.12 x 1/2" machine screws.
- Supplied as a pair, this hinge is intended for indoor applications requiring reliable door support and consistent movement.
Approved for Commercial Use
Yes
Corners
Square Corner
Function
Hinge
Gauge
0.125
Hinge Height
4
Hinge Strength
Heavy Duty
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
HingeGrade
Commercial
Height
4
Width
4
Application
2BB/HD
Corner
Square
Dimensions
Width: 4 inches
Size
4" Height X 4" Width
Finish
US15A
Options
2BB/HD
Thickness
.129
Material
Steel
Machine Screw
#12 x 1/2
Wood Screw
#12x1
Packaging Detail
Pair
Type
Square Corner
Pack Size
1
Case Weight
44 lbs
Dimension
4" x 4"
Pin Type
Removable Pin
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Bearing Type
Ball Bearing
Knuckles
5 Knuckles
Tip Style
Button Tip
Corner Type
Square Corner
Hazardous Material
No
Finish code
US15A
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
Square Corners
Mounting Method
Full Mortise
Bearing Type
Ball Bearing
Product Material
Steel
Substrate Type
Steel
Product Size
4" x 4"
Non-Removable Pin
No
Product Dimension
4" x 4"
Map Policy
Yes
Product Overview

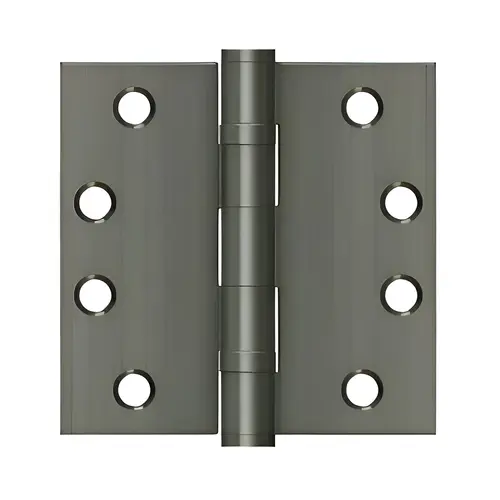

The 4" x 4" Square Hinge, HD, Ball Bearings in Antique Nickel Pair is a heavy duty hinge constructed from steel. This hinge features a 4" height and 4" width with a thickness of 0.129". Designed for residential and commercial door applications, it utilizes a ball bearing mechanism to provide support for heavy doors and reduce operational noise. The hinge is designed with a square corner style and a 5-knuckle configuration. It features 8 pre-drilled holes arranged in an arc pattern to distribute load. This hinge is intended for full mortise mounting and includes both No.12 x 1" wood screws and No.12 x 1/2" machine screws for installation. The hinge includes a removable pin and a button tip design. It is suitable for various indoor door installations, providing a functional component for door movement. The antique nickel finish provides a consistent aesthetic for door hardware.
