Features
- Constructed from steel with a satin chrome finish, this heavy duty hinge is designed for residential and commercial door applications.
- Measures 4" in height and 4" in width with a 0.129" gauge, providing a standard fit for various door types.
- Features a full mortise mounting method with 8 holes in an arc pattern to ensure stable installation on door frames.
- Equipped with ball bearings and 5 knuckles to provide support for heavy doors and ensure smooth, quiet operation.
- Includes a removable pin design, allowing for easier door removal or maintenance when necessary.
- Designed with square corners and a button tip style, suitable for traditional door hardware aesthetics.
- Comes as a pair and includes No.12 x 1" wood screws and No.12 x 1/2" machine screws for a complete installation setup.
Approved for Commercial Use
Yes
Corners
Square Corner
Function
Residential Hinge
Gauge
0.125
Hinge Height
4
Hinge Strength
Heavy Duty
Hinge Type
Ball Bearing
Hinge Width
4
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
5
Quantity
2
Removable Pin
With Removable Pin
Screw Type
Wood
Theme
Traditional
Width
4
Height
4
HingeGrade
Commercial
Size
4" Height X 4" Width
Color
Satin Chrome
Dimensions
Width: 4 inches
Corner
Square
Application
2BB/HD
Finish
US26D
Options
2BB/HD
Thickness
.129
Material
Steel
Wood Screw
#12x1
Machine Screw
#12 x 1/2
Packaging Detail
Pair
Type
Square Corner
Pack Size
1
Finish Description
Satin Chrome
Bearing Type
Ball
Finish Family
Satin Chrome
Hinge Size
4 x 4 Inch
Product Material
Steel
Number of Mounting Holes
8 Foot (96 Inches)
Metal Gauge
0.129 Inch
Fastener Size
Machine Screw: #12 x 1/2"; Wood Screw: #12 x 1"
Hinge Corner
1/4 Inch Radius Corner
Function Family
Hinge/Pivot
Features
For Indoor Applications, Heavy Duty
Product Type
Hinge/Pivot
Series
S Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Residential_Hinges_Deltana_9
Color Code
US26D
Case Weight
44 lbs
No of inners
1
Finish code
US26D
Hazardous Material
No
Corner Type
Square Corner
Tip Style
Button Tip
Knuckles
5 Knuckles
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Pin Type
Removable Pin
Dimension
4" x 4"
Substrate Type
Steel
Product Size
4" x 4"
Mounting Method
Full Mortise
Product Dimension
4" x 4"
Map Policy
Yes
Non-Removable Pin
No
Corner Style
Square Corners
Bearing Type
Ball Bearing
Product Overview

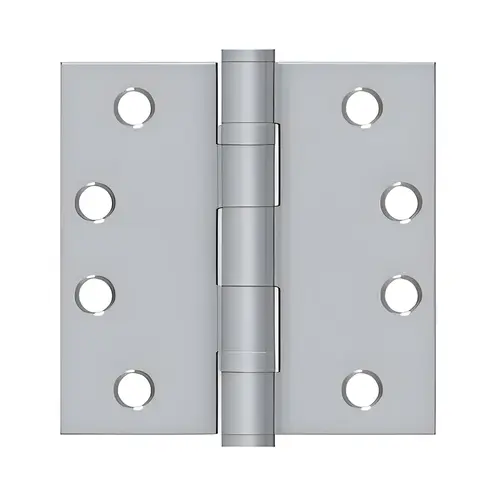

The 4" x 4" Square Hinge, HD, Ball Bearings in Brushed Chrome Pair is a heavy duty residential and commercial hinge designed for indoor door applications. Constructed from steel with a satin chrome finish, this hinge features a 5-knuckle design with a button tip. It is engineered for full mortise mounting and includes a removable pin for installation convenience. The hinge measures 4" in height and 4" in width with a metal gauge of 0.129". It features an arc hole pattern with 8 holes to distribute the load effectively across the door frame. This ball bearing hinge is suitable for both commercial and residential use, providing support for heavy doors while reducing the sound of the door during operation compared to plain hinges. The package includes No.12 x 1" wood screws and No.12 x 1/2" machine screws for mounting. This hinge is part of the S Series and is designed for traditional door hardware applications.
