Collet Chucks; Collet System: ER ; Collet Series: ER32 ; Shank Type: CAT Taper ; Taper Size: CAT40 ; Modular Connection Size: CAT40 ; Projection (Decimal Inch): 3.8400in

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

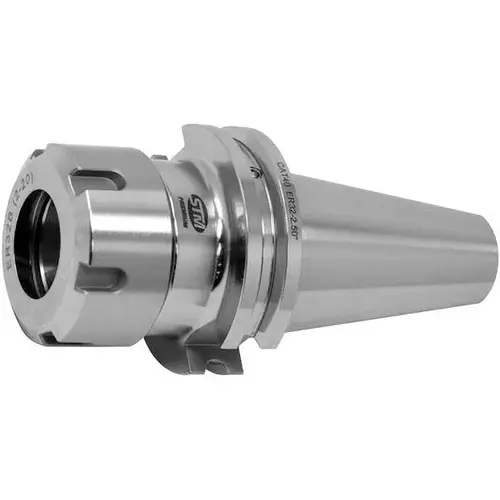

STM Premium 525421 Collet Chucks; Collet System: ER ; Collet Series: ER32 ; Shank Type: CAT Taper ; Taper Size: CAT40 ; Modular Connection Size: CAT40 ; Projection (Decimal Inch): 3.8400in

Item #: 525421 by STM Premium

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$134.57

/each
SAVE UP TO 13.46
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 261 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

CAT Taper

Actuator Type

Wrench

Thread Size (mm)

M40x1.5

Taper Size

CAT40

Collet Series

ER32

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

0.787

Minimum Collet Capacity (Decimal Inch)

0.0780

Overall Length (Decimal Inch)

5.18

Projection (Decimal Inch)

3.8400in

Shank Diameter (Decimal Inch)

1.7500

Shank Length (Decimal Inch)

2.6870

Through Coolant

Yes

TIR (Decimal Inch)

0.000200

UNSPSC Code

27112808

Vendor Drop Ship

N

Balanced To Rpm

20000

Collet Nut Diameter (Decimal Inch)

1.9700

Coolant Type

Through-Spindle

Head Length (Decimal Inch)

1.34

Nose Diameter (Decimal Inch - 4 Decimals)

1.9700

Modular Connection Size

CAT40

Locknut Diameter (Decimal Inch)

0.9039

Dual Contact

No

Product Overview
Collet Chucks; Collet System: ER ; Collet Series: ER32 ; Shank Type: CAT Taper ; Taper Size: CAT40 ; Modular Connection Size: CAT40 ; Projection (Decimal Inch): 3.8400in
