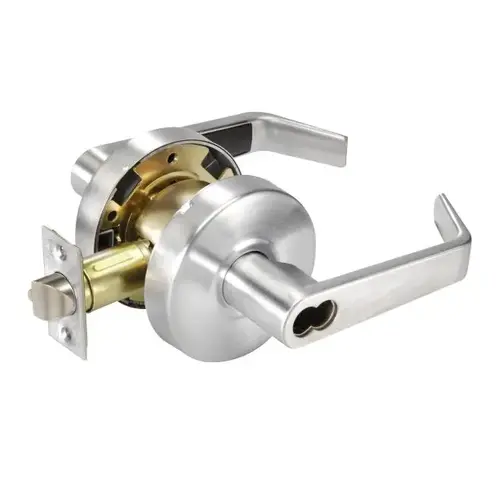

Yale Commercial B-AU4605LN 626 Storeroom Augusta Lever Grade 2 Cylindrical Lock with Small Format Interchangeable Core Prep Satin Chrome Finish
Item #: B-AU4605LN 626 by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ANSI / BHMA A156.2 Grade 2
- ANSI/BHMA Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
- UL Fire Rated Up to 3 Hours
- Adjustable from 1-3/8" to 1-3/4" Door Thickness
- Backset The 4600(LN) series cylindrical locksets are available with a 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset.
- Universal Front for Both Flat and Beveled Door Edges
- Non Handed
- Door thickness Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm).
- Installation Fits ANSI/BHMA A156.115, which covers Hardware Preparation in Steel Doors and Frames and ANSI/BHMA A156.115-W for Wood Doors with Wood or Steel Frames.
- Latchbolts 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. See page 6 for optional latchbolts.
- Strikes ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard for lever. T-Strike 2-3/4" x 1-1/8" x 1-1/4" (70mm x 29mm x 32mm) lip to center supplied standard for knob. See page 7 for optional strikes.
- Warranty The 4600(LN) series cylindrical locks carry a three-year mechanical warranty
- Through-bolts 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer.
- Fire listings 4600(LN) series locksets are UL - cUL listed for use on fire doors having a rating up to and including 3 hours.
Finish
Satin Chrome
Function
Storeroom
Series
4600LN Series
Design
Augusta
Strike
1-1/4" Curved Lip
Backset
2-3/4" Backset
Color Code
626/US26D
Lever/Knob Design
AU - Lever
Dimension
4-3/4" Lever Length; 2-1/2" Projection; 3-3/8" Rose Diameter
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore with Optional Thru Bolts
Grade
ANSI/BHMA Grade 2
Application
Commercial Applications
Warranty
3 year mechanical
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Cylinder Type
SFIC Less Core-Small Format Prep
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F86
Latch Type
Deadlatch
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
AU-Augusta
Strike Size
4-7/8" x 1-1/4"
Cylinder Material
Brass
Rose/Escutcheon Trim
Round Rose
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Cylinder Type Used
Conventional
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Function Family
Storeroom
Latch bolt size
2-3/4 Inch
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Cast Zinc (Lever); Brass (Rose)
Features
Versatile; Economical; Secure; Strong and Reliable
Product Type
Cylindrical Lock
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
Yale-B-AU-4605LN
Lever Knob Design
Augusta Lever
UL Listing Type
UL-cUL Fire Rated up to 3 Hours
Strike Dimension
1-1/4" x 2-1/4"
No of inners
1
Includes Cylinder(s)
No
No Of Pins
6 Pin
Door Thickness
1-3/8" to 1-3/4"
Finish code
626
Material
Cast Zinc
Rose/Escutcheon Design
Round Rose
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Manufacturer Warranty
Limited 3 Year Warranty
Product Overview
Storeroom Augusta Lever Grade 2 Cylindrical Lock with Small Format Interchangeable Core, MCD234 Latch, and 497-114 Strike Prep US26D (626) Satin Chrome Finish
