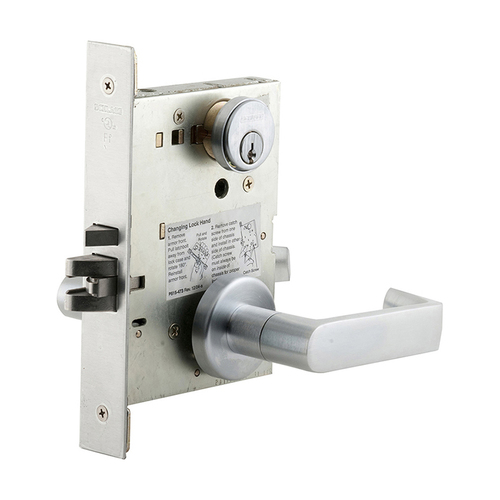

Schlage Commercial L9080P 06A 626 Storeroom Mortise Lock C Keyway with 06 Lever and A Rose Satin Chrome Finish
Item #: L9080P 06A 626 by Schlage Commercial
In Stock $912.62 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Storeroom - Latchbolt Retracted by Key Outside or by Knob/Lever Inside, Outside Knob/Lever Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked, Inside Knob/Lever is Always Free for Immediate Egress
- Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
- Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Backset: 2-3/4” (70 mm) only.
- Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
- Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
- Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
- Exposed Trim
- Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
- Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
- Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
- Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
- Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
- Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Finish
Satin Chrome
Function
9080-Storeroom
Strike
ANSI Strike
Design
06 Lever and A Rose
Color Code
626/US26D
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
5.625
Package Length
10.375
Package Volume
313.6816406
Package Width
5.375
Cylinder Type
Conventional Full-Face Cylinder
Finish Description
Satin Chrome
Lever Style
06-Lever
Keyblank Grouping
SCHL-C-6-1
Rose/Escutcheon Trim
A-Wrought Rose
Product Type
Mortise Lock
Grade
ANSI/BHMA Grade 1
Keyway
Schlage C
Backset
2-3/4 Inch
Handing
Reversible
Keying Charges
CCAM
Warranty
3 Year Limited Mechanical
Aluminium Bottle Contents
Swinging
ProductType
Manual
Hand
Reversible
Handle Type
Lever
Door Thickness
1-3/4 inch
Latch Throw
3/4 Inch
ANSI Function
F07
Latch Type
Stainless Steel Latch with Anti-Friction Tongue
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Standards
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104; Miami-Dade NOA's and Florida Building Commission Listings
Cylinder Type Used
Conventional Full-Face Cylinder
Case Dimensions
4-7/16" x 6-1/16" x 1"
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size
1-1/4" x 8" x 7/32"
Function Family
Storeroom
Strike Lip
1-3/16 Inch
Product Projection
2-1/2 Inch
Spacing
3-7/8" (Knob or Lever to Cylinder); 2-11/16" (Knob or Lever to Thumbturn Hub)
Rose/Escutcheon Width
2-1/8 Inch
Rose/Escutcheon Length
2-1/8 Inch
Features
Latchbolt Retracted by Lever/Knob Inside or Key Outside; Outside Lever/Knob is Always Inoperable; Auxiliary Latch Deadlocks Latchbolt When Door is Closed; Inside Lever Always Free for Immediate Egress
Strike Size
1-1/4" x 4-7/8"
Manufacturer Parent
Allegion
Knob/Lever Size
4-5/8 Inch
Lever Style Family
Straight Return Lever
Sub-Series
CL_Mortise_Locks_schlage_commercial_210
Cylinder Included
Yes
Alternate Part Number-1
158915
Latch Bolt Type
Deadlatch
Knob/Lever Design
06
Rose/Escutcheon Size
2-1/8"
Latch Bolt Faceplate Size
8" x 1-1/4"
Door Bore Size
2-1/8"
Lock Category
Mortise Lock
Door Thickness Min
1-3/4"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
3/4"
Rose/Escutcheon Style
Rose
Knob/Lever Style
Lever
The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.
180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.
Key features:- Exceeds ANSI/BHMA Gradel operational and security standards
- Expansive list of configurations and options, including retrofit indicators
- 50 standard mechanical functions, custom functions also offered
- "The Original" universal lock case allows creation of 10 functions from a single lock body
- 14 finishes and 33 levers, two knobs, five roses and three escutcheon designs
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available - open, patented, restricted, geographic exclusive, UL 437
- CRS with zinc dichromate plating
- 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)
- Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
- Standard: 1 3/4" (44 mm)
- Non-handed
- Forged brass or bronze and cast stainless steel
- Heavy-duty wrought brass, bronze or stainless steel
- lever (SL1) and knob (SK1)
- Available on 01, 02, 03, 05, 06, 07, 12, 17, 18, M51, M52, M81, ME1, ME2, ME3 lever designs
- 7 15/16" x 1 3/4" x 7/16" (202 mm x 44 mm x 11 mm);
cold-forged brass or bronze and stainless steel
- 7 7/8" x 2 1/2" x 7/16" (200 mm x 64 mm x 11 mm);
heavy wrought reinforced brass, bronze and stainless steel
- A ,B ,C: wrought brass or bronze and stainless steel;
AVA and MER: forged brass
- 14 available: 605, 606, 609, 612, 613, 619, 622, 625, 626, 626AM, 629, 630, 630AM, 643e
- Available with knob both sides, lever both sides, or knob/lever combinations. Roses cannot be combined with escutcheons.
- 2 3/4" (70 mm) only
- 1 1/4" x 5 9/16" x 7/32" (32 mm x 141 mm x 6 mm)
- 1" (25 mm) throw stainless steel deadbolt
- 3/4" (19 mm) throw stainless steel latch with anti-friction tongue
- 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box
- Standard: Pin and tumbler mechanism in the Patented Schlage Everest 29 S123 keyway (6-pin); two nickel silver cut keys per lock
- With FSIC interchangeable core cylinders: Grade 2 Security
- With SFIC interchangeable core cylinders: Grade 3 Security
- ASTM F476-76 Grade 40
- Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
- UL 10C and CAN/ULC-S104 3-hour Fire Listed
- All locks listed for A label single doors,
4' x 10' and pairs 8' x 10' - Letter F and UL symbol on latch front indicate list
- UL 437 Listed when using UL 437 cylinder
- UL Listed for 3-hour fire door (except L9076 and L9077)
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2"
(64 mm) or less comply
- Miami-Dade NOA's and Florida Building Commission Listings
- 3 year limited mechanical and 1 year limited electromechanical
