Sugatsune America 75AUM3 Aileron Upward-Opening System
Item #: 75AUM3 by Sugatsune America
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Power Factor
816 to 1 224
Motion Technology
Soft-Close
Opening Types
Lift-Up Opening
Product Overview
With upward-opening soft close ARN-3

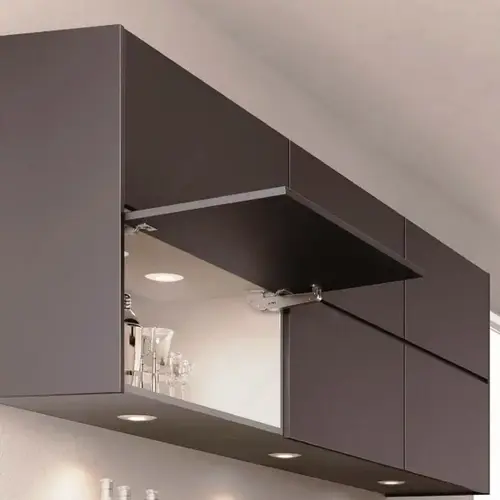

In sophisticated design, less is more. And when style meets functionality, less is definitely most. We introduce to you the elegant Aileron System by Sugatsune, a freestop, soft down, stay-and-lift assist with minimal hardware components.
The Aileron System is engineered to be a versatile system for use with upper cabinets, benches, toy chests, and more. It ensures smooth, continuous door movement with adjustable closing speed and free-stop functions. Plus, five different closing adjustments make sure your cabinet doors always close gently and right where you want them.
Advantages And Benefits
Easy Installation: simply place the cup hinge then screw on the Aileron Lidstay, it's that simple!
* Smooth door movement; specially designed for use with the OLYMPIA concealed hinge.
* Lift-assist function allows for easy opening of doors
* Board thickness: Min:9/16 in (15mm) - Max:7/8 in (22mm)
* Free-stop function holds open doors in place (30 degrees max.)
* Soft-close function ensures doors close gently (0 - 30 degrees)
* Integrated design combines a concealed hinge and lid stay.
* Closing speed of doors is adjustable
Included Product(S)
- 1 Aileron
- 1 Mounting plate for Aileron
- 2 Olympia hinges
- 1 Mounting plate for Olympia hinges
- Screws
Important Information
Refer to the graph on the installation sheet as a guide for model selection.
For use with doors outside of the scope of this graph, use the calculation below. Door weight must include all attached accessories.
Torque (lbs * inch) = Door height (inches) 0.5 weight (lbs).
